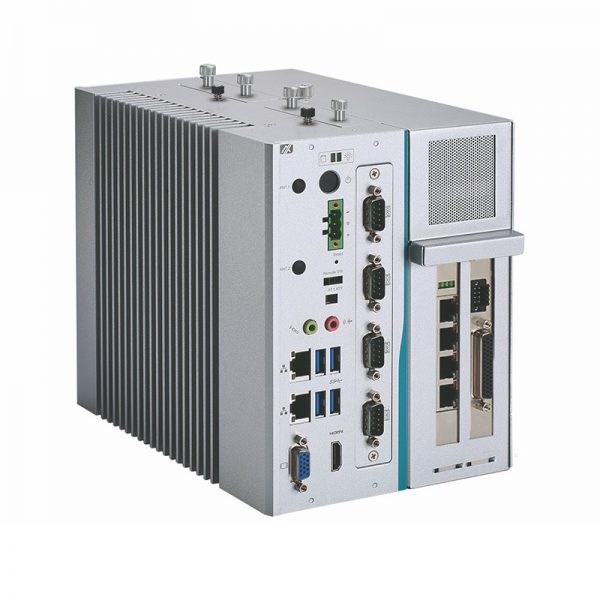

IPS960-511-PoE

Features

• Integrated real-time vision I/O
  4-CH trigger input
  4-CH or 8-CH trigger output
  4-CH LED lighting control
  1-CH quadrature encoder input
  16-CH isolated DIO
  1-CH auto measurement function
• Supports camera interfaces
  4 IEEE802.3at GbE LAN ports (PoE)
  4 USB 3.0 ports
• Power input: 24 VDC (uMin=19V/uMax=30V)
• -10°C to +55°C operating temperature range
• Supports 2 swappable 2.5″ HDD
• Supports optional WLAN module & antenna
• Supports TPM 2.0 function
• Compact & front I/O design

Introduction

Featuring a multi-core CPU, IP40-rated rugged design, camera communication interfaces, real-time vision-specific I/O with microsecond-scale and LED lighting control, the IPS960-511-PoE  provides an all-in-one solution that addresses the needs across various machine vision platforms and automatic inspection cases. The IPS960-511-PoE is powered by the LGA1151 socket the 7th & 6th generation Intel® Core™ (codename: Kaby Lake/Skylake) and Celeron® processors (up to 65W) with the Intel® H110 chipset. The intelligent vision system comes with dual DDR4-2133/2400 un-buffered SO-DIMM sockets for up to 32GB of system memory as well as supports rich camera interfaces for connecting industrial cameras, including four IEEE802.3at PoE LAN ports and four USB 3.0 ports. Its vision I/O integrates a full range of isolated I/O interfaces and real-time controls essential to machine vision applications, including trigger input, LED lighting controller, camera trigger, as well as an encoder input for conveyor tracking. The IPS960-511-PoE also supports lighting dimming control to identify object characteristics for different inspection. Two easy-swappable 2.5″ HDDs are available for extensive storage needs.
