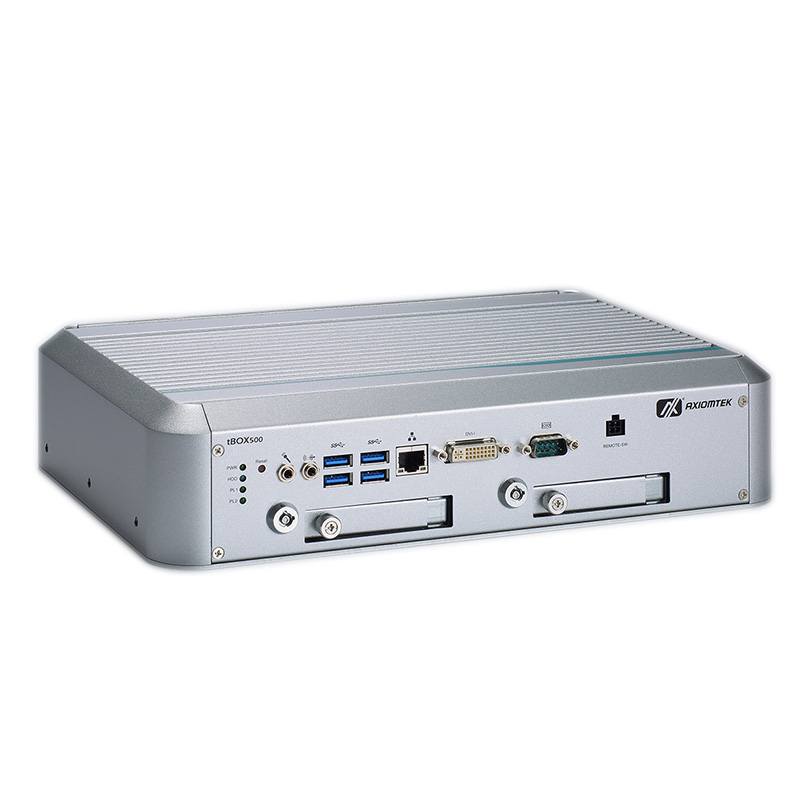

tBOX500-510-FL

Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processors for Railway, Vehicle and Marine PC



Features

  • CE (Class A), EN 50155, EN 50121-3-2 certified; FCC, EN 45545-2, E-Mark, ISO 7637-2 DNV 2.4 and IEC 60945 compliance
  • 7th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake)
  • 2 VAM slots, wide selections (COM/LAN/DIO/PoE/CAN/BNC)
  • External PoE PSU (optional), up to 120W power supply
  • Fanless design and suitability for wide operating temperatures from -40°C to +70°C
  • Power Input:
    24 ~ 110VDC for Railway version
    12/24VDC for Vehicle version
    24VDC for Marine version
  • Intelligent solution of vehicle power management (ACC ignition)
  • 2 swappable 2.5″ SATA drives

Introduction

The tBOX500-510-FL comes with the onboard 7th generation Intel® Core™ or Intel® Celeron® processor 3965U along with onboard two DDR4-2133 SO-DIMM slots supporting up to 32GB system memory. It offers two I/O module slots and a wide selection of value-added modules (VAM) to meet different user requirements and customizations. The rugged tBOX500-510-FL is certified with E-Mark, ISO 7637-2, EN 50155, EN 50121, DNV 2.4, EN 45545-2 and IEC 60945.It supports a wide temperature range from -40°C to +70°C and anti-vibration of up to 5 Grms. The fanless embedded box PC equipped with intelligent power management offers ACC on/off delay, shutdown delay and over/under voltage protection. It supports a wide voltage input range: 9V to 36V DC for vehicle applications, 14V to 32V DC for railway & marine applications, and 16.8V to 137.5V DC for railway applications. For system integrators with extensive storage needs, the box computer offers two 2.5” SATA HDDs and one mSATA. The new transportation embedded system is well suited for transportation-related applications such as security surveillance, onboard devices controller, truck fleet management, data transfer, and onboard passenger infotainment system.

Specifications

CPU
  • Intel® Core™ i7-7600U 2C @ 2.8 ~ 3.9 GHz
  • Intel® Core™ i5-7300U 2C @ 2.6 ~ 3.5 GHz
  • Intel® Core™ i3-7100U 2C @ 2.4 GHz
  • Intel® Celeron® 3965U 2C @ 2.2 GHz
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4-1866/2133 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x DB9 serial console or RS-232/422/485
USB
  • 4 x USB 3.0
Ethernet
  • 1 x 10/100/1000 Mbps
Display
  • 1 x DVI-I
CANbus
  • Available from I/O module (optional)
Digital I/O
  • Available from I/O module (optional)
Audio
  • Mic-in/Line-out
Storage
  • 2 x swappable 2.5″ SATA drive (7/9.5 mm )
  • 1 x mSATA (use 1 PCI Express Mini Card slot)
Expansion
  • 3 x full-size PCI Express Mini Card slot
  • 2 x SIM card slot

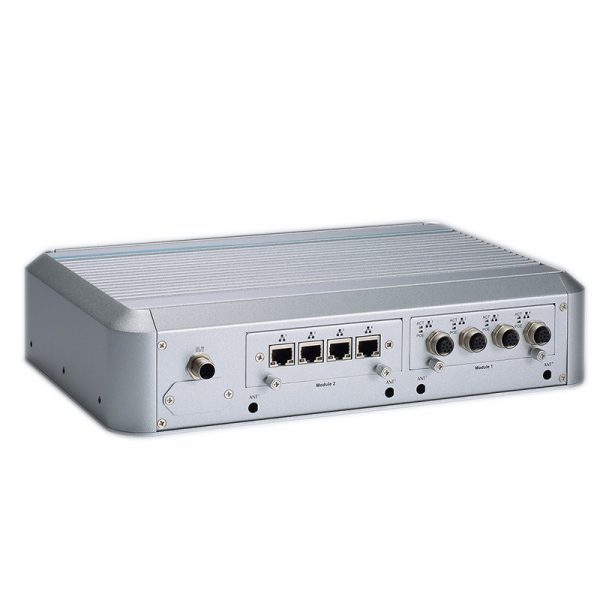

  • 2 x Value-added module slot
Others
  • 1 x M12 or Terminal block DC-in (optional)
  • 1 x PoE power-in (optional)
Power Consumption
  • N/A
Power Supply
  • Railway: 24 ~ 110VDC (tolerance: 16.8 ~ 137.5 VDC)
  • Vehicle: 12/24VDC (tolerance: 9 ~ 36VDC, w/ ACC ignition)
  • Marine: 24VDC (tolerance: 14 ~ 32VDC)
  • PoE power output maximum 120W (*/**/***), 15.4W/8 ports (802.3af), 30W/4 ports (802.3at)
    * To be used with PoE VAM (VAM701 & 703)
    ** Different system version has different PSU
    *** 24V input Railway ver. is available (Marine by request)
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F) with W.T. SSD
  • -25°C ~ +55°C (-13°F ~ +131°F) with W.T. HDD
Relative Humidity
  • 10% ~ 95%, non-condensing
Vibration
  • 3Grms w/ SSD, 1.5Grms w/ HDD (5 ~ 500Hz, X/Y/Z direction; random)
Shock
  • N/A
Dimensions
(W x D x H)
  • 321 x 210.2 x 73.3 mm (12.64″ x 8.28″ x 2.89″)
Weight (net/gross)
  • 3.5 kg (7.72 lb)/4.5 kg (11.02 lb)
Certificate
  • CE (Class A), FCC, EN 50155, EN 50121, EN 45545-2, E-Mark and ISO 7637-2 certified
  • DNV 2.4 and IEC 60945 compliant
EOS
  • Windows® 10 64-bit, Linux
Mounting
  • Wall mount

Ordering Information

  • tBOX500-510-FL-Celeron-24-110MRDC (P/N-E26N500103)
  • Fanless railway embedded system, Intel® Celeron® 3965U 2.2 GHz processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, two 2.5″ SATA trays, M12 A-code 5P DC-in, and 16.8~137.5VDC
  • tBOX500-510-FL-i3-24-110MRDC (P/N-E26N500102)
  • Fanless railway embedded system, Intel® Core™ i3-7100U 2.4 GHz processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, two 2.5″ SATA trays, M12 A-code 5P DC-in, and 16.8~137.5VDC
  • tBOX500-510-FL-i5-24-110MRDC (P/N-E26N500101)
  • Fanless railway embedded system, Intel® Core™ i5-7300U 2.6 ~ 3.5 GHz processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, two 2.5″ SATA trays, M12 A-code 5P DC-in, and 16.8~137.5VDC
  • tBOX500-510-FL-i7-24-110MRDC (P/N-E26N500100)
  • Fanless railway embedded system, Intel® Core™ i7-7600U 2.8 ~ 3.9 GHz processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, two 2.5″ SATA trays, M12 A-code 5P DC-in, and 16.8~137.5VDC
  • tBOX500-510-FL-Celeron/i3/i5/i7-TVDC (By request)
  • Fanless vehicle embedded system, Intel® Celeron® 3965U/Core™ i3-7100U/i5-7300U/ i7-7600U processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, two 2.5″ SATA trays, 9 ~ 36VDC, TB 3P DC-in, and ACC ignition
  • tBOX500-510-FL-Celeron/i3/i5/i7-TMDC (By request)
  • Fanless marine embedded system, Intel® Celeron®3965U/ Core™ i3-7100U/i5-7300U/ i7-7600U processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, two 2.5″ SATA trays, 9 ~ 36VDC, TB 3P DC-in, and 14 ~ 32VDC
  • VAM700 (P/N-E277700100)
  • 4 x M12 A-code GbE
  • VAM701 (PoE/PoE+) (P/N-E277701100)
  • 4 x M12 A-coded GbE with PoE
  • VAM702 (P/N-E277702100)
  • 4 x RJ45 A-code GbE

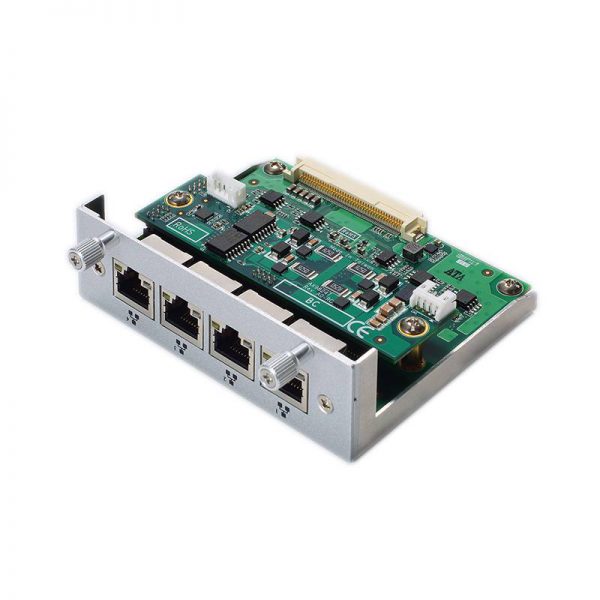

  • VAM703 (PoE/PoE+) (P/N-E277703100)
  • 4 x RJ45 A-code GbE with PoE
  • VAM100 (P/N-E277100100)
  • 4 x 4-wire isolated RS-232/422/485
  • VAM101 (P/N-E277101100)
  • 4 x isolated CANbus 2.0A/B
  • VAM200 (P/N-E277200100)
  • 8-in/8-out isolated DIO
  • VAM600 (P/N-E277600100)
  • 1 x PCI Express Mini Card Slot +1 x SIM Card Slot & 1 x PCI Express Mini Card Slot (USB only) + 1 x SIM Card Slot

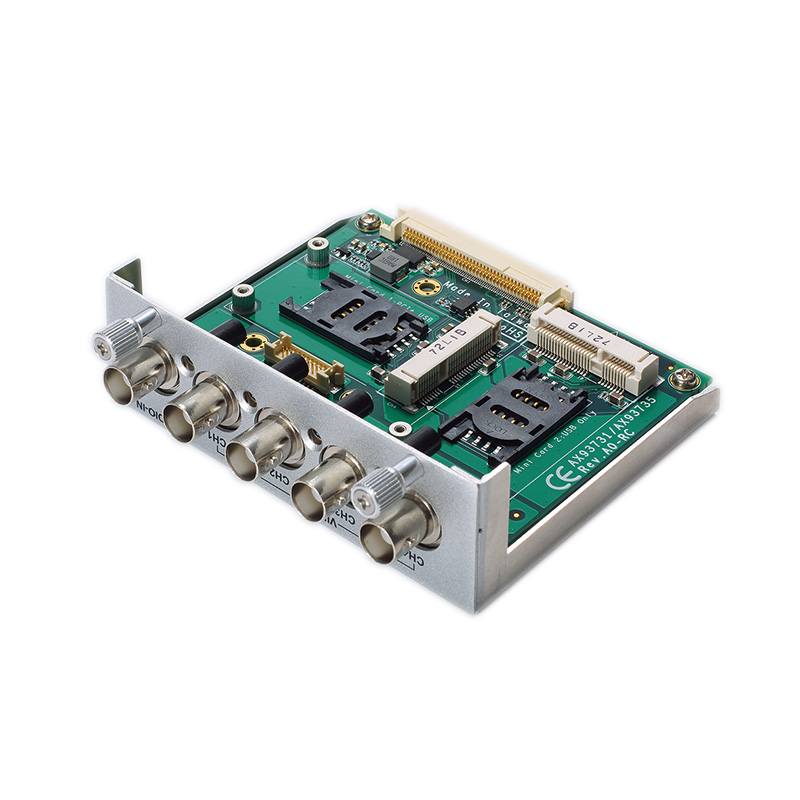

  • VAM400 (P/N-E277400100)
  • 4 x Video& 1 x Audio-in +1 x PCI Express Mini Card Slot (USB only) + 1 x SIM Card slot
  • 2.5″ SATA HDD/SSD
  • 128GB or above
  • mSATA
  • 64GB or above
  • DDR4 SO-DIMM
  • 4GB ~ 16GB
  • 3G/4G/GPS module
  • 826N3230140E, 82606200410E
  • Wi-Fi/Bluetooth module
  • 826N3230060E, 826N3230100E, 826N3230110E, 826N3230120E
  • DC in cable
  • 594B8120B30E (M12, w/o ACC), 594B7100B00E (Wire, w/ ACC)
  • LAN cable
  • 594N3202730E (M12-A male 8P to RJ-45)
  • Remote Switch cable
  • 594K3101020E
  • Value-added module (VAM)
  • VAM700, VAM701, VAM702, VAM703, VAM100, VAM101, VAM200, VAM600, VAM400
  • AC to DC Adapter
  • 50906D24000E (24V/120W, Wire), 50966224010E (24V 90W, M12 Acode 5P)
  • Power cord
  • 59903000000E (EU), 59906000010E (JP), 59902000000E (US), 59904000000E (UK)
  • Power Supply Unit (PSU)
  • E276120101 PoE 120W DC/DC external PSU (EN 50155 compliance, 24V-in, 53V-out, available for tBOX500 24V railway version only)
