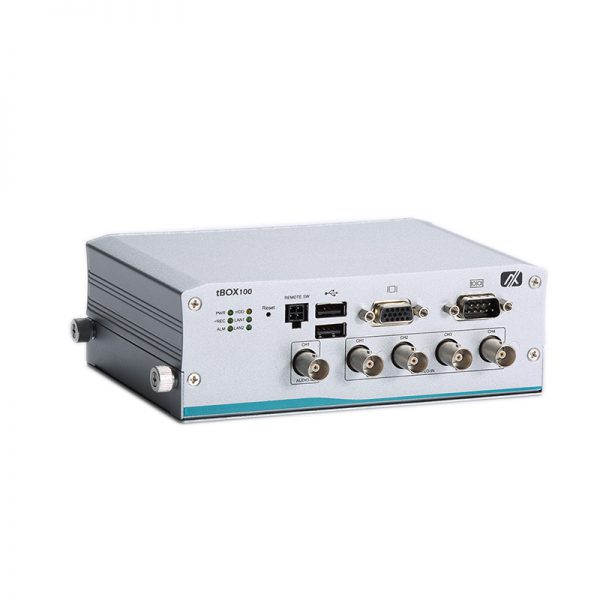

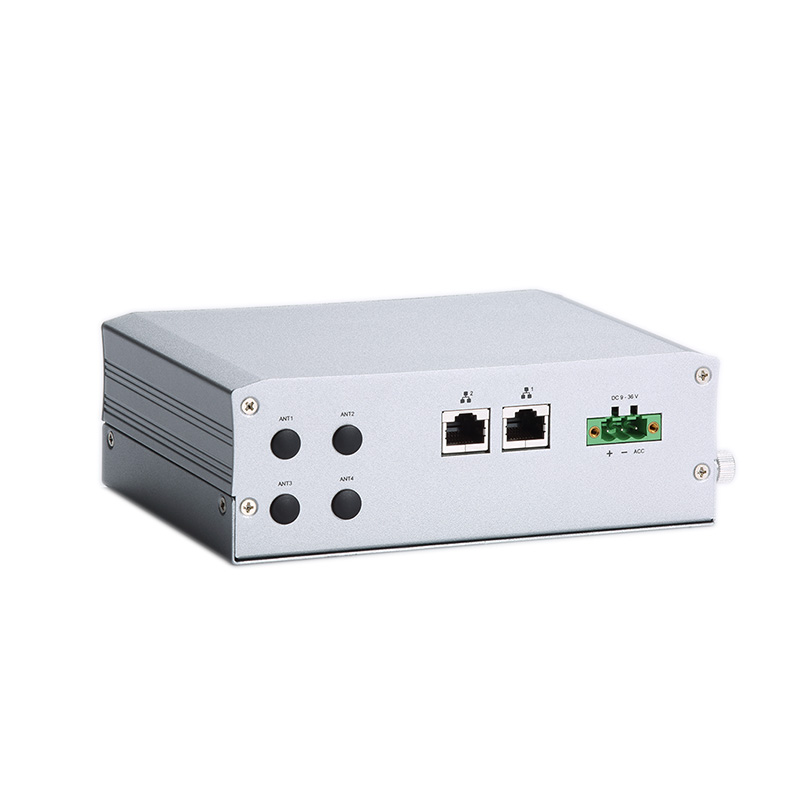

tBOX100-838-FL

Fanless Embedded System with Intel® Atom® Processor E3845 for Vehicle, Railway and Marine PC



Features

  • CE (Class A) certified, E-Mark, ISO 7637-2 EN 50155, EN 50121, DNV 2.4 and IEC 60945 compliance
  • Intel® Atom® processor E3845 4C @ 1.91 GHz
  • 4GB DDR3L-1333 memory onboard
  • Intelligent solution of vehicle power management (ACC ignition)
  • Compact size, multiple I/Os, DIN-rail and wall mount
  • 1 PCI Express Mini Card slot and 1 SIM Card slot

Introduction

The tBOX100-838-FL is certified with E-Mark and ISO 7637 for vehicle applications. The rugged tBOX100-838-FL comes with the onboard low power quad-core Intel® Atom™ processor E3845 along with onboard DDR3L memory up to 4GB. The compact vehicle PC features five BNC connectors with four video-in and one audio-in as well as one capture card for DVR surveillance applications. The capture SDK is ready and integrated to support system integrators to speed up the solution development. In addition, it was designed to withstand a wide temperature range from -40°C to +60°C and vibration up to 3 Grms, equipped with intelligent power management at wide voltage range 9-36VDC. The tBOX100-838-FL is also compliant with EN 50155, EN 50121, DNV 2.4, and IEC 60945 for use in rolling stock and marine industries. The cost-effective embedded system adopts a heavy-duty aluminum extrusion and steel case to withstand the rigors of day-to-day operation. The compact size of the fanless transportation computer ensures that it can fit into a variety of space constricting environments. To ensure that the system can be integrated into various locations, the tBOX100-838-FL supports DIN-rail and wall mount. The feature-rich system is ideal for security surveillance, transportation controller, data transfer and management.

Specifications

CPU
  • Intel® Atom® processor E3845 (4C@1.91GHz)
Chipset
  • SoC integrated
System Memory
  • DDR3L-1333, 4 GB memory onboard
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • Option #1: 2 x M12 A-coded GbE LAN
  • Option #2: 2 x RJ-45 GbE LAN (Intel® i210)
Display
  • 1 x VGA
CANbus
  • N/A
Digital I/O
  • N/A
Audio
  • 5 x BNC (4 x video-in/1 x audio-in )
Storage
  • 1 x 2.5” SATA (7/9.5 mm)
Expansion
  • 1 x full-size PCI Express Mini Card slot
  • 1 x SIM card slot
Others
  • 1x M12 DC power input or 1 x Phoenix DC power input
  • 4 x Antenna opening
  • 1 x Remote switch
  • 1 x Reset button
Power Supply
  • 9 ~ 36 VDC, typical: 12/24 VDC
  • 14 ~ 32 VDC, typical: 24 VDC
Power Consumption
  • N/A
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +60°C (-40°F ~ +140°F) with W.T. SSD
  • -25°C ~ +55°C (-13°F ~ +131°F) with W.T. HDD
Relative Humidity
  • 5% ~ 95%, non-condensing
Vibration
  • 2 Grms w/ SSD (5-500Hz, X, Y, Z direction; random)
  • 1 Grms w/ HDD (5-500Hz, X, Y, Z direction; random)
Shock
  • Comply EN 61373 section 10 table 3 category 1 class A and class B up to 5 Grms (30ms, ±X/Y/Z direction)
Dimensions
(W x D x H)
  • 163.8 x 108 x 56.3 mm (6.44″ x 4.25” x 2.22”)
Weight (net/gross)
  • 0.77 kg (1.69 lb)/1.40 kg (3.09 lb)
Certificate
  • CE (Class A) certified, E-Mark, ISO 7637-2 EN 50155,
  • EN 50121, DNV 2.4 and IEC 60945 compliance
EOS
  • Windows® 10, WE8S, WES 7, Linux, VxWorks7
Mounting
  • DIN rail
  • Wall mount

Ordering Information

  • tBOX100-838-FL-E3845-RJ-ACC-DC (P/N-E26N100100)
  • Fanless vehicle embedded system with Intel® Atom®
  • processor E3845, 4GB RAM, 2 GbE LANs (RJ-45), phoenix DC-in, COM, 5 BNC (4 x video-in/1 x audio-in), capture card
  • and ACC ignition
  • tBOX100-838-FL-E3845-24MRDC (2018 Q1 available)
  • Fanless railway embedded system with Intel® Atom® processor E3845, 4GB RAM, 2 GbE LANs (M12), M12 DC-in, COM, 5 BNC (4 x video-in/1 x audio-in) and capture card
  • 2.5” SATA HDD/SSD
  • 3G/4G/GPS module
  • Wi-Fi/Bluetooth module
  • PCI Express Mini Card
  • Remote switch cable
  • M12 LAN cable
  • M12 power cable
