P6171-V2

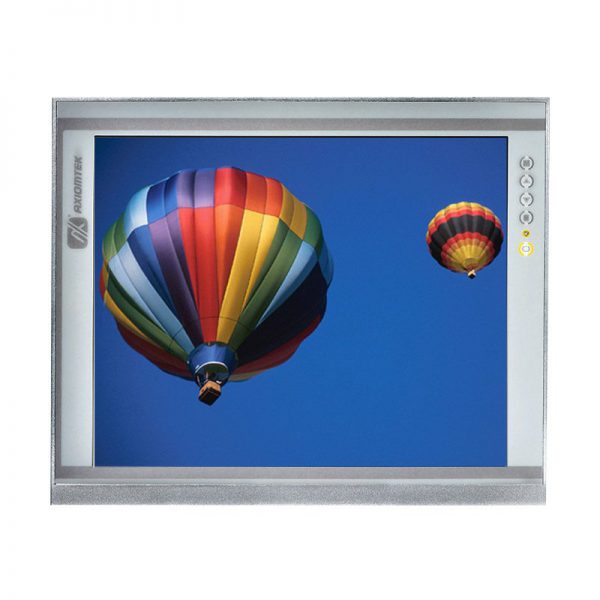

17″ SXGA TFT Industrial LCD Monitor



Features

  • 17″ SXGA TFT LED backlight LCD
  • NEMA 4/12 (IP65)- compliant flat panel monitor
  • Supports panel mount, wall mount, rack mount and VESA arm
  • Resistive touchscreen
  • Full range screw-type (locked) AC-in or 12V/24V DC-in (option)
  • HDMI, DVI-D and VGA with multi signal inputs

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel
  • 17″ SXGA TFT LCD
Max Colors
  • 16.2 M
Active Area (mm)
  • 337.92 x 270.33
Max. Resolution
  • 1280 x 1024
Display Mode
  • VGA 640 x 350 (70Hz)
  • VGA 640 x 480 (60/72/75Hz)
  • VGA 720 x 400 (70Hz)
  • SVGA 800 x 600 (60/72/75Hz)
  • XGA 1024 x 768 (60/72/75Hz)
  • SXGA 1280 x 1024 (60/72/75Hz)
Pixel Pitch (mm)
  • 0.264 x 0.264
Backlight MTBF (hrs)
  • 30,000 hrs
Viewing Angle (H/V)
  • 170°/160°
Response Time
  • 5ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 250 nits
Display Control
  • OSD (on screen display)

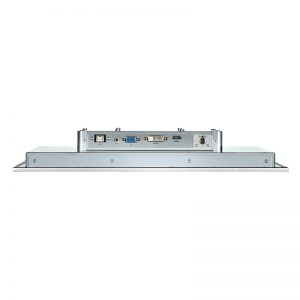

I/O Interface
  • 1 x RS-232 or USB for touchscreen version
  • 1 x DVI-D
  • 1 x VGA
  • 1 x HDMI
  • 1 x Screw-type DC power input
Touchscreen
  • Serial RS-232 or USB interface
Power Adapter
  • Screw-type external AC / DC power adapter
Power Comsumption
  • 24 W
Operating Temperature
  • 0°C ~ +45°C (+32°F ~ +113°F)
Dimensions
(W x D x H)
  • 410.31 x 58 x 338.31 mm (16.15″ x 2.28″ x 13.32″)
Weight (net/gross)
  • 3.8 kg (8.38 lb)/6.56 kg (14.46 lb)
Mounting
  • Panel mount
  • Wall mount
  • Rack mount
  • VESA arm
Certificate
  • CE

Ordering Information

  • P6171PR-AC-RS-US-EU-V2
  • AC Power, Resistive (RS-232) touchscreen
  • P6171PR-AC-U-US-EU-V2
  • AC Power, Resistive (USB) touchscreen
  • P6171PG-AC-US-EU-V2
  • AC Power, Glass touchscreen
  • P6171PR-24VDC-RS-V2
  • 12V/24VDC Power, Resistive (RS-232) touchscreen
  • P6171PR-24VDC-U-V2
  • 12V/24VDC Power, Resistive (USB) touchscreen
  • P6171PG-24VDC-V2
  • 12V/24VDC Power, Glass touchscreen
  • 5946L203800E
  • HDMI cable
  • 59461713400E
  • DVI cable
  • 82231770050E
  • Wall mount kit
  • 82261710120E
  • Panel mount kit
  • 82261710170E
  • Rack mount kit
