P6105

10.4″ XGA TFT EN 50155 Railway Touch Display (-25°C to +55°C)



Features

  • EN 50155 certified monitor for railway application
  • 10.4″ high brightness XGA TFT touchscreen LCD
  • Wide viewing angle and high brightness 500 nits
  • VGA, DVI-D and HDMI with multiple video inputs
  • Light sensor for auto-dimming (optional)
  • 24 VDC or 110 VDC power input
  • -25°C to +55°C wide temperature range
  • Supports 5 keys OSD

Introduction

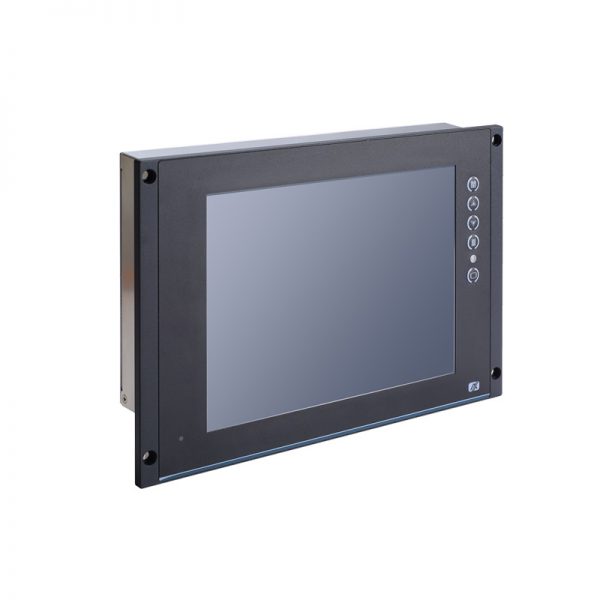

The P6105, a 10.4″ EN50155 certified touchscreen railway display is designed specifically for transportation application. The rugged display offers a resistive touchscreen with 500 nits high brightness and has LED backlighting for power saving. It is equipped with a RS-232 touch control interface, and multiple video inputs of DVI-D, HDMI, which offers customers a variety of connection options. The 10.4-inch EN50155-certified railway touch monitor adopts extended temperature technology and supports a wide temperature range from -25°C to +55°C. Its friendly fanless cooling system design and super compact ID aimed at rolling stock as well as harsh environments. The railway touchscreen display has an industrial-grade IP65/NEMA 4/12 compliant metal front bezel which resists water spillage and is specifically designed for railway sector.

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel
  • 10.4″ TFT XGA LCD
Max Colors
  • 16.2M/262k
Active Area (mm)
  • 210.4 x 157.8
Max. Resolution
  • 1024 x 768 pixels
Display Mode
  • VGA 640 x 480 (60/72Hz)
  • SVGA 800 x 600 (60/72Hz)
  • XGA 1024 x 768 (60/72Hz)
Pixel Pitch (mm)
  • 0.0685 x 0.2055
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 176°/176°
Response Time
  • 25ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 500 nits
Display Control
  • OSD (on screen display)

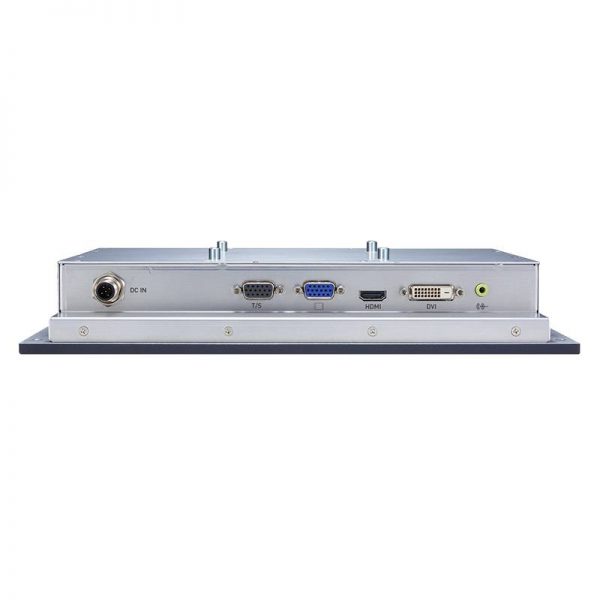

I/O Interface
  • 1 x RS-232 for touchscreen and remote control
  • 1 x HDMI
  • 1 x DVI-D
  • 1 x DC power input
  • 1 x VGA
I/Touchscreen
  • Resistive type
Power Adapter
  • 24VDC or 110VDC power input
Power Comsumption
  • 24 V, 16 W
Operating Temperature
  • -25°C ~ +55°C (-13°F ~ +131°F)
Dimensions (W x D x H)
  • 310 x 49 x 214 mm (12.20″ x 1.94″ x 8.43″)
Weight (net/gross)
  • 2.2 kg (4.85 lb) / 3.45 kg (7.61 lb)
Mounting
  • Panel mount
  • VESA arm
Certificate
  • CE, EN 50155

Ordering Information

  • P6105PR-24VDC w/ VGA
  • 10.4″ XGA railway touch display with EN 50155 and 24 VDC power input
  • P6105PR-110VDC w/ VGA
  • 10.4″ XGA railway touch display with EN 50155 and 110 VDC power input
