P6101O

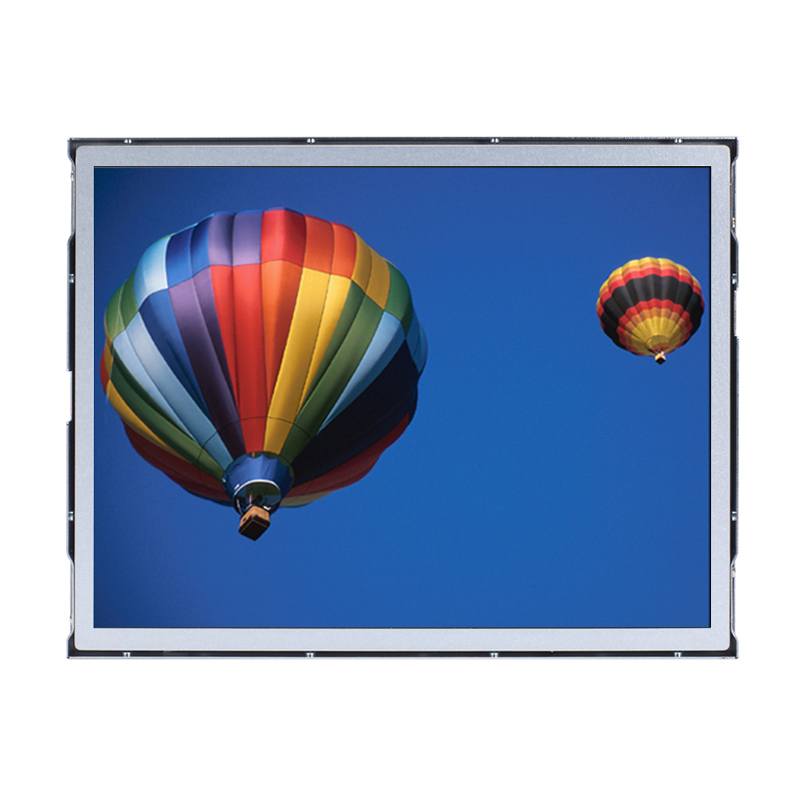

10.4″ XGA TFT Industrial Open Frame Monitor



Features

  • 10.4″ XGA TFT LED backlight LCD
  • Supports open frame mount, wall mount and VESA arm
  • Resistive touchscreen
  • Full range screw-type (locked) AC-in or 12V/24V DC-in (option)
  • DVI-D, VGA and HDMI with multi-signal inputs

Introduction

The P6101O is a 10.4-inch ultra-slim open frame industrial touch monitor. The feature-rich monitor adopts resistive touchscreen with 350 nits high brightness and energy-saving LED-backlight panel. Designed for flexibility, the P6101O supports multi-signal inputs including DVI-D, VGA and HDMI. The slim and light industrial LCD monitor is designed to fit a wide range of applications. There are also options for USB or RS-232 touch control interface. The compact industrial LCD display supports various mounting ways including panel mount, VESA arm, wall mount, and rackmount. Featuring ultra-slim and light mechanism design, The P6101O can be easily deployed in any space-limited environments.

Specifications

Front Bezel
  • Open frame monitor
LCD Panel
  • 10.4″ XGA TFT LCD
Max Colors
  • 16.7M
Active Area (mm)
  • 211.2 x 158.4
Max. Resolution
  • 1024 x 768
Display Mode
  • VGA 640 x 350 (70Hz)
  • VGA 640 x 480 (60/72/75Hz)
  • VGA 720 x 400 (70Hz)
  • SVGA 800 x 600 (60/72/75Hz)
  • XGA 1024 x 768 (60/72/75Hz)
Pixel Pitch (mm)
  • 0.2063 x 0.2063
Backlight MTBF (hrs)
  • 30,000 hrs
Viewing Angle (H/V)
  • 150°/150°
Response Time
  • 16ms
Contrast Ratio
  • 900 (TYP.)
LCD Brightness (cd/m²)
  • 350 nits
Display Control
  • OSD (on screen display)
I/O Interface
  • 1 x RS-232 or USB for touchscreen version
  • 1 x DVI-D
  • 1 x VGA
  • 1 x HDMI
  • 1 x Screw-type DC power input
Touchscreen
  • Resistive type
Power Adapter
  • Screw-type external AC/DC power adapter
Power Comsumption
  • TBD
Operating Temperature
  • -10°C ~ +55°C (+14°F ~ +131°F)
Dimensions
(W x D x H)
  • 246.3 x 44.9 x 192.3 mm (9.7″ x 1.77″ x 7.57″)
Weight (net/gross)
  • TBD
Mounting
  • Open frame
  • Wall mount
  • VESA arm
  • Desktop stand
Certificate
  • CE

Ordering Information

  • P6101OR-AC-RS-US-EU
  • AC Power, Resistive (RS-232) touchscreen
  • P6101OR-AC-U-US-EU
  • AC Power, Resistive (USB) touchscreen
  • P6101ON-AC-US-EU
  • AC Power, Non-touch
  • P6101OR-DC-RS
  • 12V/24VDC, Resistive (RS-232) touchscreen
  • P6101OR-DC-U
  • 12V/24VDC, Resistive (USB) touchscreen
  • P6101ON-DC
  • 12V/24VDC, Non-touch
  • 5946L203800E
  • HDMI cable
  • 59461713400E
  • DVI cable
  • 82231770050E
  • Wall mount kit
  • E226171106
  • Desktop stand

Download

Drivers

Date Description Version Download File
2017/07/25 P6101 VA3.2 23,699.8KB

Manual

Date Description Version Download File
2017/07/25 P6101 User’s Manual VA1_04-10-2017 VA3.2 1,060KB
