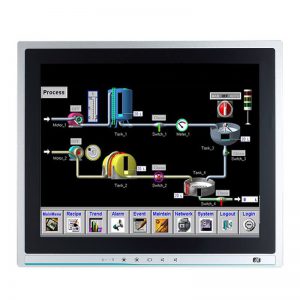

P1177E-500

17″ XGA TFT Expandable Industrial Touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor and 1 PCI/PCIe Slot



Features

  • 17″ XGA TFT LCD display
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
  • Intel® H110 chipset
  • Less screw design for easy installation
  • 4 USB 3.0, 2 USB 2.0 and 4 COM
  • One PCIe x4 or one PCI slot
  • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
  • Robust IP65 compliant aluminum front bezel
  • 5 OSD keys in the front panel

Introduction

The P1177E-500 features scalable CPU options with the LGA1151 socket 7h/6th generation Intel® Core™ i7/i5/i3, Celeron® or Pentium® processors with the Intel® H110 chipset. The P1177E-500 comes in a 17-inch XGA TFT LCD display with 5-wire resistive touchscreen and 250 nits of brightness; it also adopts a robust IP65 compliant aluminum front bezel. The robust all-in-one computer adopts an industrial-grade design and IP65-rated front bezel which makes it the perfect fit for industrial applications. It features dual DDR4-2133 Long-DIMM sockets for up to 32GB of system memory. It also has one PCIe x4 or PCI slot for integration with a variety of add-on cards. There is a variety of I/O interfaces including four USB 3.0 ports, two USB 2.0 ports, three RS-232 ports, one RS-232/422/485 port, two Gigabit Ethernet ports (built-in Intel® I211-AT Ethernet Controller), one audio (Mic-in/Line-out), one VGA, one HDMI, one DisplayPort, and one remote power switch. For extensive storage options, it supports one 2.5″ or 3.5″ SATA HDD or two 2.5″ SATA HDD upon request. It also comes with built-in speakers for use in multimedia kiosk applications and offers an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity.

Specifications

LCD Panel
  • 17″ XGA TFT LCD
  • 250 nits
  • 1024 x 768 pixels
CPU
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
Chipset
  • Intel® H110
System Memory
  • 2 x 288-pin Long-DIMM DDR4-2133, up to 32GB
BIOS
  • AMI
COM
  • 3 x RS-232
  • 1 x RS-232/422/485
USB
  • 4 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i219LM/i211AT)
Display
  • 1 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Audio
  • Mic-in/Line-out
Storage
  • 1 x 3.5″ or 1 x 2.5″ 7/9.5 mm SATA HDD
  • 2 x 2.5″ 7/9.5 mm SATA HDD (optional)
Expansion
  • 1 x PCIe x4 or 1 x PCI
Others
  • 1 x Remote Power Switch
Touchscreen
  • 5-wire resistive type
Front Bezel
  • Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply
  • 100 ~ 240 VAC, 200 W
Power Comsumption
  • 143W
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Operating Temperature
  • 0°C ~ +50°C (+32°F ~ +122°F)
Relative Humidity
  • 10% ~ 90% @ +40°C, non-considering
Vibration
  • 1.0G, 5 ~ 500 Hz, random
Dimensions
(W x D x H)
  • 411.82 x 90 x 353.24 mm (16.21″ x 3.54″ x 13.91″)
Weight (net/gross)
  • 6.4 Kg (14.11 lb) / 10.2 Kg (22.49 lb)
Certificate
  • CE
EOS
  • Skylake: Windows® 7/8.1/10
  • Kabylake: Windows® 10 64-bit
Mounting
  • VESA mount
  • Wall mount
  • Rack mount
  • Desktop stand

Ordering Information

  • P1177E-500 w/ PCIe
  • 17″ XGA expandable industrial touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCIe x4 slot and 100 ~ 240 VAC
  • P1177E-500 w/ PCI
  • 17″ XGA expandable industrial touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCI slot and 100 ~ 240 VAC
  • 82211570380E
  • P1157E-500 2.5″ slim HDD kit supports 15″/17″ touch panel PC
  • 82211770290E
  • P1177E-500 VESA & wall mount kit
  • 82231870240E
  • Wireless LAN kit (Sparklan 251N)
  • E981604011
  • ATC10 (VESA arm clamp type)
  • E981604012
  • ATW10 (VESA arm wall mount)
  • E983100017
  • VESA desktop stand (black)
