P1127E-500

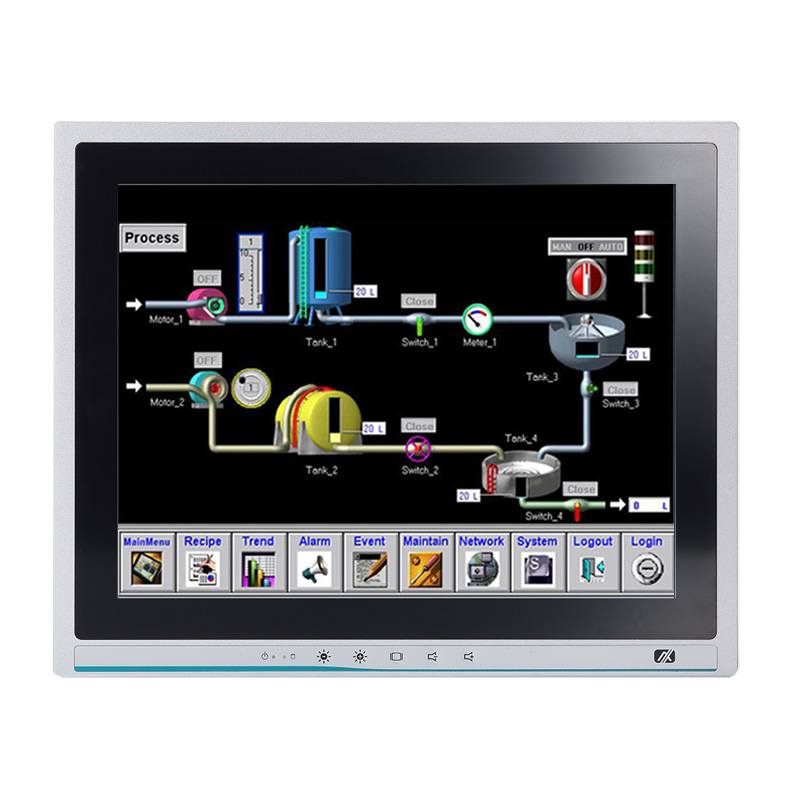

12.1″ XGA TFT Expandable Industrial Touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor and 1 PCI/PCIe Slot



Features

  • 12.1″ XGA TFT LCD display
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
  • Intel® H110 chipset
  • Less screw design for easy installation
  • 4 USB 3.0, 2 USB 2.0 and 4 COM
  • One PCIe x4 or one PCIe slot
  • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
  • Robust IP65 compliant aluminum front bezel
  • 5 OSD keys in front panel

Introduction

The P1127E-500 features built-in speakers, an optional Wi-Fi 802.11 b/g/n module and WLAN antenna, making it perfectly suited for use in multimedia kiosks or as a human machine interface (HMI) in industrial automation applications. The P1127E-500 has a 12.1-inch XGA TFT LCD display with 5-wire resistive touchscreen and 500 nits of brightness. This high-performance touch panel PC supports the 7th/6th generation Intel® Core™, Celeron® and Pentium® processors (codename: Kaby Lake) in an LGA1151 socket with the Intel® H110 chipset. Coming with one PCIe x4 slot or PCI slot, the 12.1” industrial touch panel system offers flexible integration of a variety of add-on cards. The P1127E-500 is equipped with dual DDR4-2133 Long-DIMM sockets supporting up to 32GB system memory. The rich I/O options include three RS-232 ports, one RS-232/422/485 port, four USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one audio (Mic-in/Line-out), one VGA, one HDMI and one DisplayPort. This expandable touch panel computer also has one 2.5” SATA HDD for storage. It can be installed using a desktop stand, VESA arm, or wall mounting. It is compatible with the Windows® 10, Windows® 8.1, and Windows® 7 operating systems.

Specifications

LCD Panel
  • 12.1″ XGA TFT LCD
  • 500 nits
  • 1024 x 768 pixels
CPU
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
Chipset
  • Intel® H110
System Memory
  • 2 x 288-pin Long-DIMM DDR4-2133, up to 32GB
BIOS
  • AMI
COM
  • 3 x RS-232
  • 1 x RS-232/422/485
USB
  • 4 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i219LM/i211AT)
Display
  • 1 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Audio
  • Mic-in/Line-out
Storage
  • 1 x 2.5″ SATA HDD (7-9.5 mm height)
Expansion
  • 1 x PCIe x4 or 1 x PCI
Others
  • 1 x Remote Power Switch
Touchscreen
  • 5-wire resistive type
Front Bezel
  • Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply
  • 100 ~ 240 VAC, 200 W
Power Comsumption
  • TBC
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Operating Temperature
  • 0°C ~ +50°C (+32°F ~ +122°F)
Relative Humidity
  • 10% ~ 90% @ +40°C, non-considering
Vibration
  • 1.0G, 5 ~ 500 Hz, random
Dimensions
(W x D x H)
  • TBC
Weight (net/gross)
  • TBC
Certificate
  • CE
EOS
  • Skylake: Windows® 7/8.1/10
  • Kaby Lake: Windows® 10 64-bit
Mounting
  • VESA mount
  • Wall mount
  • Rack mount
  • Desktop stand

Ordering Information

  • P1127E-500 w/ PCIe
  • 12.1″ XGA expandable industrial touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCIe x4 slot and 100 ~ 240 VAC
  • P1127E-500 w/ PCI
  • 12.1″ XGA expandable industrial touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCI slot and 100 ~ 240 VAC
  • 82211270210E
  • VESA & wall mount kit
  • 82231870240E
  • Wireless LAN kit (Sparklan251N)
  • E981604011
  • ATC10 (VESA arm clamp type)
  • E981604012
  • ATW10 (VESA arm wall mount)
  • E983100017
  • VESA desktop stand (black)
