Product

Home OPS875

OPS875

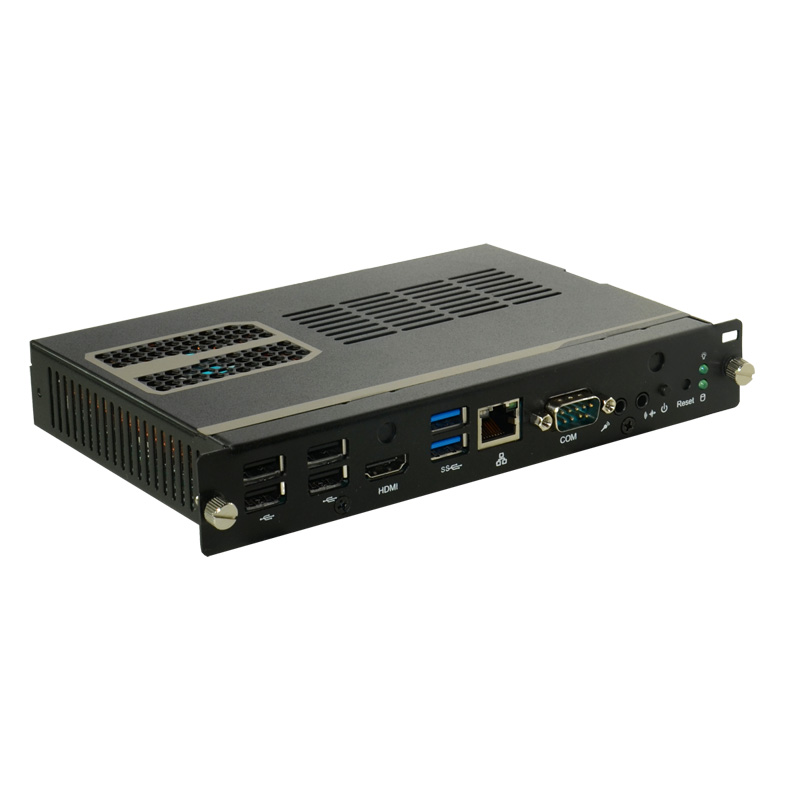

Open Pluggable Specification (OPS) Digital Signage Player with Intel® Core™ i7/i5/i3 Processor



Features

  • Open Pluggable Specification (OPS) compliance
  • Socket G2 (rPGA988B) 3rd gen Intel® Core™ i7/i5/i3 processor
  • Intel® HM76 chipset
  • DDR3-1600 SO-DIMM, up to 8GB
  • 2 USB 3.0 ports and 1 PCIe Mini Card slot
  • Pluggable HDD for easy maintenance
  • Easy to change DRAM
  • HDMI for 2nd display

Specifications

CPU
  • Socket G2 (rPGA988B) 3rd generation Intel® Core™ i7/i5/i3 processor
Chipset
  • Intel® HM76
System Memory
  • 1 x 204-pin SO-DIMM DDR3-1600, up to 8 GB
BIOS
  • AMI
COM
  • 1 x RS-232
USB
  • 2 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® 82579LM)
Display
  • 1 x HDMI
Audio
  • Line-out/Mic-in
JAE TX-25
  • 1 x DisplayPort (via OPS JAE interconnector)
  • 2 x USB 2.0 (via OPS JAE interconnector)
  • 1 x USB 3.0 (via OPS JAE interconnector)
  • 1 x HDMI/DVI (via OPS JAE interconnector)
  • 1 x Audio (Line-out, via OPS JAE interconnector)
  • 1 x UART (TX/RX, via OPS JAE interconnector)
Wi-Fi
  • Optional 802.11 b/g/n
Storage
  • 1 x 2.5″ SATA HDD
Expansion
  • 1 x PCI Express Mini Card or mSATA
Power Supply
  • 12VDC ~19VDC
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Operating Temperature
  • 0°C ~ +45°C (32°F ~ 113°F) (With airow 0.5m/s)
Dimensions
(W x D x H)
  • 200 x 119 x 30 (7.87″ x 4.68″ x 1.18″)
Weight (net/gross)
  • 1 kg (2.2 lb)/1.5 kg (3.3 lb)
Certificate
  • CE

Ordering Information

  • OPS875
  • OPS digital signage player with socket G2 3rd generation Intel® Core™ processor
  • AX93169
  • OPS docking board

Download

Drivers

Date Description Version Download File
2017/03/27 ME VA.0 48,228.9KB
2017/03/27 Option VA1.0 11,474.4KB
2017/03/27 HD Audio VA1.0 131,632KB
2017/03/27 LAN VA1.0 55,695KB
2017/03/27 USB 3.0 for Win7 VA1.0 4,973KB
2017/03/27 Chipset VA1.0 2,567KB
2017/03/27 Graphic VA1.0 220,058.9KB

Please read our Software License Information
