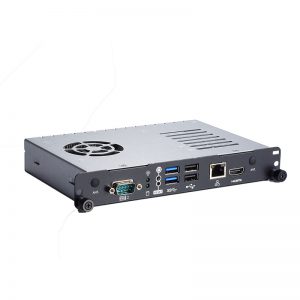

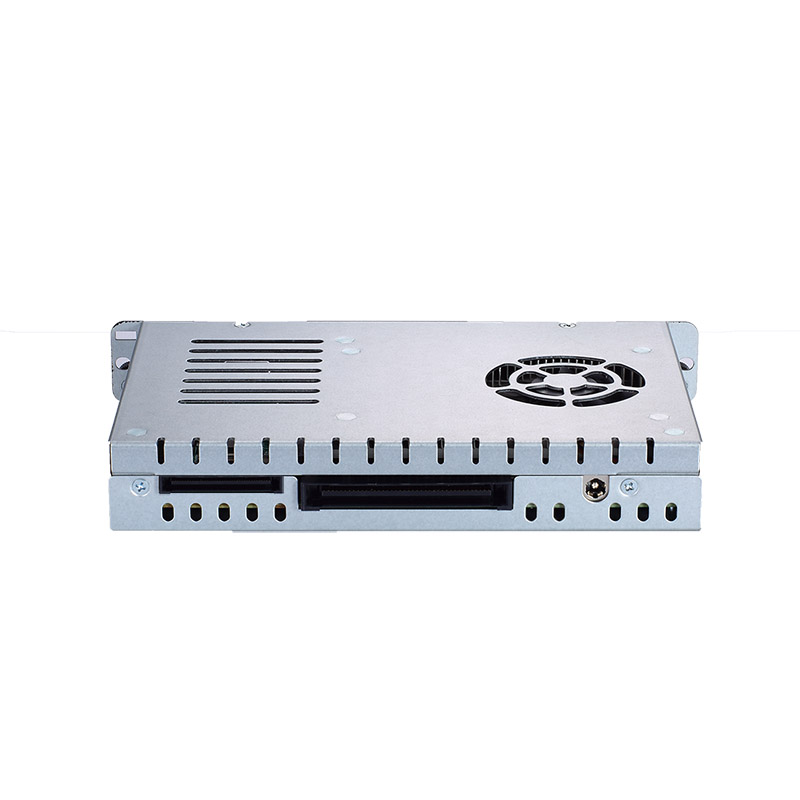

OPS700-520

Open Pluggable Specification-Plus (OPS+) Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor and TPM 2.0



Features

  • Intel® Open Pluggable Specification-Plus (OPS+ compliance)
  • 8th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Coffee Lake-S)
  • 2 DDR4-2400 SO-DIMM, up to 32GB
  • 1 M.2 M Key for storage & 1 M.2 E Key for Wi-Fi solution
  • Support additional DisplayPort and PCIe x4 through HRS-FX18 connector
  • Supports Intel® AMT (Active Management Technology) 12.0

Specifications

CPU
  • LGA1151 socket 8th gen Intel® Core™ i7/i5/i3 & Celeron® processor, 35WTDP
Chipset
  • Intel® Q370
System Memory
  • 2 x 260-pin SO-DIMM DDR4-2400, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232 (COM 2)
USB
  • 2 x USB 2.0
  • 2 x USB 3.1 Type A
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219LM)
Display
  • 1 x HDMI with 4K resolution
Audio
  • N/A
JAE TX-25
  • 1 x DisplayPort (4K @ 60Hz via OPS JAE interconnector)
  • 1 x HDMI 2.0 (4K @ 60Hz via OPS JAE interconnector)
  • 2 x USB 2.0 (via OPS JAE interconnector)
  • 1 x USB 3.0 (via OPS JAE interconnector)
  • 1 x Audio (Line-out, via OPS JAE interconnector)
  • 1 x UART (TX/RX, via OPS JAE interconnector) (COM 1)
  • 1 x DisplayPort (4K @ 60Hz via OPS HRS interconnector)
  • 1 x PCI Express x4 (via OPS HRS interconnector)
Wi-Fi
  • 802.11 b/g/n (optional)
Storage
  • 1 x M.2 2280 SATA/PCIe
Expansion
  • 1 x M.2 2230 E Key for Wi-Fi
Power Supply
  • 1 x 12 VDC power input by adapter option
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Operating Temperature
  • 0°C ~ +45°C (+32°F ~ +113°F) (with airflow 1.2m/s)
Dimensions
(W x D x H)
  • 200 x 119 x 30 mm (7.87” x 4.68” x 1.18”)
Weight (net/gross)
  • 1 kg (2.21lb)/1.5 kg (3.3 lb)
Certificate
  • CE, FCC Class A

Ordering Information

  • OPS700-520
  • OPS+ 4K digital signage player with LGA1151 socket Intel® Core™ i7/i5/i3 & Celeron® processors with Intel® Q370
  • AX93197
  • OPS+ docking board with 4K @ 60Hz solution
