OPS500-501

Open Pluggable Specification (OPS) Digital Signage Player with 6th/7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® Q170 and AMT 11.0



Features

  • Intel® Open Pluggable Specification (OPS compliance) 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Skylake/Kaby Lake)
  • DDR4-2133 SO-DIMM, up to 16GB
  • 1 PCI Express Mini Card slot
  • Easy installation and maintenance
  • HDMI for 2nd ultra HD display with 4K@60 Hz resolution
  • Intel® AMT (Active Management Technology) 11.0

Introduction

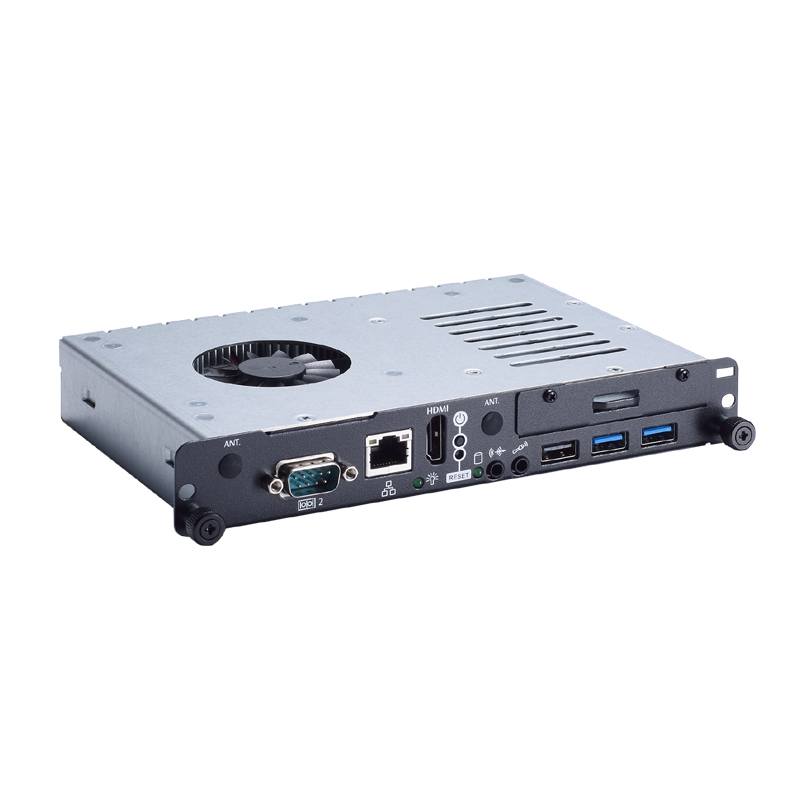

The OPS500-501 is a 4K resolution OPS compliant digital signage player supporting Intel® Active Management Technology (AMT) 11.0 for better remote management. The space-saving OPS signage module is powered by the 6th generation Intel® Core™ processor with Intel® Q170 chipset. It has one 260-pin DDR4-2133 SO-DIMM socket with up to 16GB memory capacity. Compliant with the Intel® OPS architecture, the 4K-ready signage player provides a high level of compatibility as well as simplified installation, maintenance and deployment for a lower total cost of ownership. The outstanding digital signage player, the OPS500-501, is connected to OPS-compliant display via a standardized JAE TX-25A plug connector that supports DisplayPort, HDMI 2.0, UART, audio, USB 3.0 and USB 2.0 signals. To meet various application needs, the powerful digital signage system offers rich I/O interfaces on its front panel, including one USB 2.0 ports, two USB 3.0 ports, one COM port, audio (in/out), HDMI and a Gigabit Ethernet port. This space-saving OPS signage player has one PCI Express Mini Card slot for WLAN connectivity and features one 2.5” SATA HDD for extensive storage needs.

Specifications

CPU
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors
Chipset
  • Intel® Q170
System Memory
  • 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB
BIOS
  • AMI
COM
  • 1 x RS-232 (COM 2)
USB
  • 2 x USB 3.0
  • 1 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219LM)
Display
  • 1 x HDMI with 4K resolution
Audio
  • 1 x Audio (Line-out)
  • 1 x Audio (Mic-in)
JAE TX-25
  • 1 x DisplayPort (4K@60Hz via OPS JAE interconnector)
  • 1 x HDMI 2.0 (4K@60Hz via OPS JAE interconnector)
  • 2 x USB 2.0 (via OPS JAE interconnector)
  • 1 x USB 3.0 (via OPS JAE interconnector)
  • 1 x Audio (Line out, via OPS JAE interconnector)
  • 1 x UART (TX/RX, via OPS JAE interconnector) (COM1)
Wi-Fi
  • 802.11 b/g/n (optional)
Storage
  • 1 x 2.5″ SATA HDD
  • 1 x mSATA (optional)
Expansion
  • 1 x Full-size PCI Express Mini Card (USB + PCI Express + SATA signal)
Power Supply
  • 1 x 12VDC power input by adapter option
Watchdog Timer
  • 255 levels, 1 – 255 sec.
Operating Temperature
  • 0°C ~ +45°C (+32°F ~ +113°F) (with airflow 1.2m/s)
Dimensions
(W x D x H)
  • 200 x 119 x 30 mm (7.87” x 4.68” x 1.18”)
Weight (net/gross)
  • 1 kg (2.21 lb)/1.5 kg (3.3 lb)
Certificate
  • CE

Ordering Information

  • OPS500-501
  • OPS digital signage player with LGA1151 socket Intel® Core™ i7/i5/i3 & Celeron® processors and iAMT 11.0
  • X93167
  • OPS docking board with 4K resolution
  • AX93190
  • OPS docking board with 4K/60 Hz resolution+WLAN kit

Download

Drivers

Date Description Version Download File
2018/02/22 Driver_LAN V1.4 156,290.6KB
2018/02/22 Driver_ME V1.4 175,714.2KB
2018/02/22 Driver_Rapid Storage Technology V1.4 12,561.5KB
2018/02/22 Driver_Audio V1.4 366,257.5KB
2018/02/22 Win7_Driver_USB 3.0 V1.4 5,036.5KB
2018/02/22 Driver_Graphic V1.4 259,240.6KB
2018/02/22 Driver_Chipset V1.4 2,609.7KB

Manual

Date Description Version Download File
2017/06/22 Quick Manual V2.0 812.7KB
2017/06/22 User’s Manual V2.0 3,397.1KB
