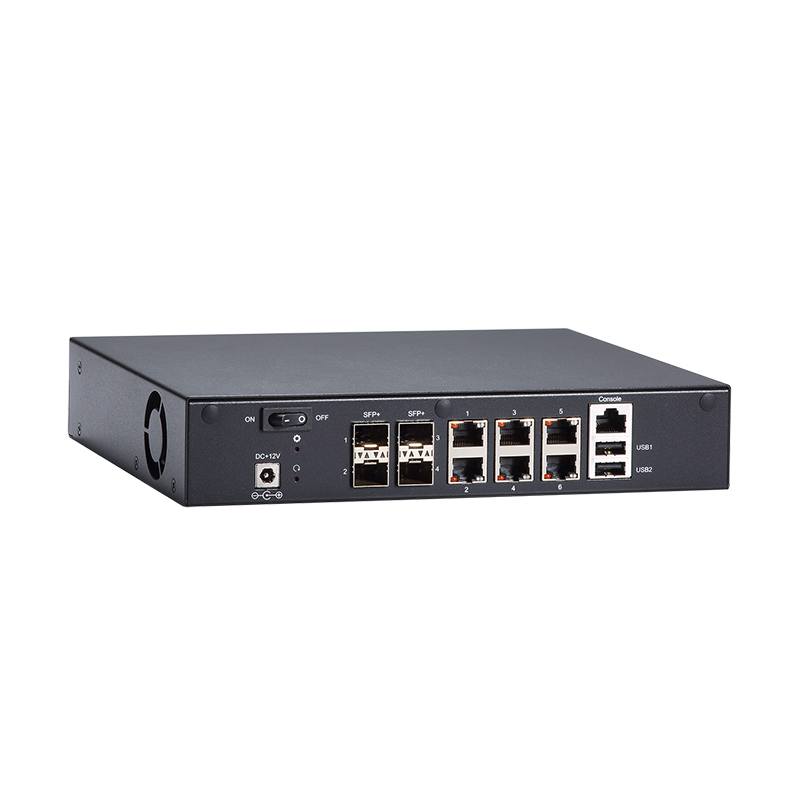

NA362

Compact Network Appliance Platform with Intel® Atom® Processor C3000 Family and up to 10 LANs



Features

  • Intel® Atom® processor C3000 family (Denverton)
  • Four DDR4 R-DIMM (up to 128GB) or U-DIMM (up to 64GB) memory
  • Six 10/100/1000 Mbps Ethernet ports and four SFP+ ports
  • Wi-Fi/3G/LTE through PCI Express Mini Card slot for optional
  • Supports Intel® QuickAssist Technology
  • Supports Intel® Data Plane Development Kit (Intel® DPDK)
  • Suitable for VPN, network bandwidth controller, firewall and UTM applications

Introduction

The NA362 is powered by the low power consumption Intel® Atom™ processor C3338/C3558/C3758 (Codename: Denverton). In addition to six 10/100/1000 Mbps LAN ports (Intel® i210 Ethernet controller), this desktop network appliance also comes with four 10 GbE SFP+ fiber ports for high bandwidth and long-distance communications. The NA362 is an excellent choice for a wide array of network applications including UTM, VPN, firewall, gateway, SD-WAN and vCPE with its enhanced security and performance. The Denverton–based NA362 features the Intel® QuickAssist Technology (Intel® QAT) for accelerated data processing including symmetric encryption and authentication, asymmetric encryption, digital signatures, RSA, DH, ECC, and lossless data compression. Furthermore, it also supports the Intel® Data Plane Development Kit (Intel® DPDK), which greatly boosts packet processing performance and throughput, allowing more time for data plane applications. The NA362 comes with either two or four DDR4 R-DIMM/U-DIMM with 64GB or 128GB of non-buffer non-ECC/ECC memory. The slim-type network communication platform is equipped with one 2.5″ SATA3 HDD and one mSATA for sufficient storage. It also supports wireless communication of Wi-Fi, 3G, LTE through a PCI Express Mini Card slot. I/O options include two USB 2.0 ports and a serial console port. To ensure reliable operation, the 10-port network platform supports watchdog timer. Moreover, it also supports mainstream Yocto, Linux, Windows® Server 2012 R2, and Windows® Server 2016 operating systems.

Specifications

Form Factor
  • 1U desktop
CPU
  • Intel® Atom® processor C3338/C3558/C3758 (Denverton)
Chipset
  • SoC integrated
System Memory
  • 4 x DDR4 R-DIMM (up to 128GB)/U-DIMM (up to 64GB), non-buffer non-ECC/ECC memory (C3558/C3758)
  • 2 x DDR4 R-DIMM (up to 64GB)/U-DIMM (up to 32GB), non-buffer non-ECC/ECC memory (C3338)
BIOS
  • AMI
Ethernet
  • 6 x 10/100/1000 Mbps Ethernet (Intel® i210) (C3338)
  • 6 x 10/100/1000 Mbps Ethernet (Intel® i210) and 2 x 10 GbE SFP+ (C3558)
  • 6 x 10/100/1000 Mbps Ethernet (Intel® i210) and 4 x 10 GbE SFP+ (C3758)
LAN Bypass
  • One pair
LAN Module
  • N/A
Storage
  • 1 x 2.5″ SATA3 HDD
  • 1 x mSATA
Expansion
  • 1 x PCI Express Mini Card slot
I/O Interface
  • 1 x RS-232 (RJ-type)
  • 2 x USB 2.0
Power Supply
  • 1 x 12V, 5A power adapter (C3338/C3558)
  • 1 x 12V, 7A power adapter (C3758)
LCM Module
  • N/A
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +104°F)
Dimensions
(W x D x H)
  • 44 x 231 x 197 mm (1.73″ x 9.09″ x 7.76″)
Weight (net/gross)
  • 1.64 kg (3.62 lb)/2.54 kg (5.60 lb) with 12V/5A adapter (C3338/C3558)
  • 1.64 kg (3.62 lb)/2.69 kg (5.93 lb) with 12V/7A adapter (C3758)
EOS Support
  • Yocto, Linux
Certificate
  • FCC class B/CE class B

Ordering Information

  • NA362-D6GI-C3338-US w/o LBP (P/N-E26E362102)
  • 1U compact network appliance with Intel® Atom® processor C3338, 2 R-DIMM/U-DIMM up to 6 GbE LANs
  • NA362-D6GI-C3558-US w/o LBP (P/N-E26E362100)
  • 1U compact network appliance with Intel® Atom® processor C3558, 4 R-DIMM/U-DIMM up to 6 GbE LANs
  • NA362-D8MI-C3558-US w/o LBP (P/N-E26E362105)
  • 1U compact network appliance with Intel® Atom® processor C3558, 4 R-DIMM/U-DIMM up to 6 GbE LANs and 2 x 10 GbE SFP+ ports
  • NA362-DAMI-C3758-US w/ LBP (P/N-E26E362101)
  • 1U compact network appliance with Intel® Atom® processor C3758, 4 R-DIMM/U-DIMM up to 6 GbE LANs and 4 x 10 GbE SFP+ ports
  • 5916E552000E
  • DB9F-RJ-45 1.8M console cable
