MPC240

24″ FHD TFT Medical Grade Panel Computer with 4th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Mobile Processor



Features

  • 24″ FHD TFT LCD display with LED backlight
  • Socket G3 4th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® mobile processors
  • EN 60601-1 and CE certified
  • Spill-proof front panel design
  • 10-point multi-touch screen
  • Antimicrobial enclosure
  • Ultra slim and super lightweight design
  • Supports optional wall mount/VESA arm/desktop stand

Introduction

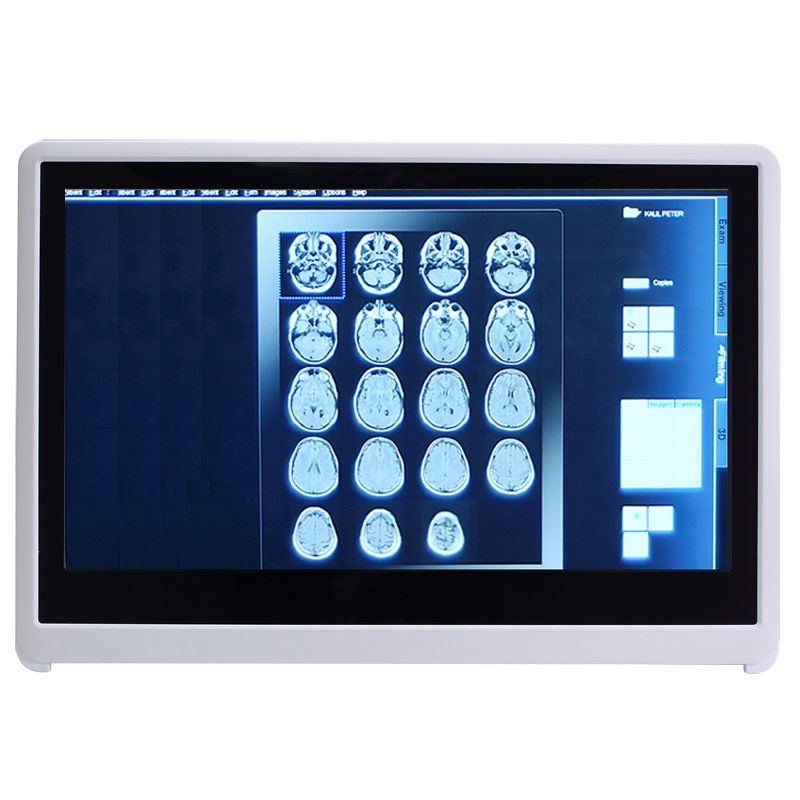

The 24″ touch medical PC MPC240 is EN60601-1, CE certified to ensure medical operation safety. The Intel® Haswell touchscreen medical panel PC is equipped with a 24-inch Full HD TFT LCD display with brightness of 250 nits. Especially designed for the medical environment. Constructed with an antimicrobial enclosure can prevent any bacterial invasion. The powerful yet super slim 24in medical panel system MPC240 is powered by 4th generation Intel® Core™ processor with DDR3L memory of up to 16 GB. Moreover, the medical touch panel PC supports USB 3.0 ports, Gigabit LAN port and HDMI port to provide end user’s multiple choices.

Specifications

LCD Panel
  • 24″ Full HD TFT LCD
  • 250 nits
  • 1920 x 1080 pixels
CPU
  • Socket G3 4th generation Intel® Core™ i7/i5/i3, Intel® Celeron® & Pentium® processor
Chipset
  • SoC Integrated
System Memory
  • 2 x 204-pin SO-DIMM DDR3L-1600, up to 16 GB
BIOS
  • AMI
COM
  • N/A
USB
  • 4 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps
Display
  • 1 x HDMI
Audio
  • 2 x 1.5 KHz speaker/ 70dB
  • 1 x Microphone
Camera
  • 1 x 2M pixels webcam
Optical Drive
  • Optical disc drive
Storage
  • 1 x 2.5″ SATA HDD
  • 1 x M2-type SATA SSD
Expansion
  • 1 x SDXC card reader slot
  • 1 x PCI Express Mini Card slot for Wi-Fi
Others
  • 1 x Proximity sensor
Touchscreen
  • Projected capacitive multi-touch 10-point
Front Bezel
  • Spill-proof
Power Consumption
  • N/A
Power Supply
  • 100V-240V, 135W medical grade power adapter
  • Built-in UPS battery (optional)
Watchdog Timer
  • 255 levels, 0~255 sec.
Operating Temperature
  • 5°C ~ +40°C (+13°F ~ +104°F)
Relative Humidity
  • 10%~90% @ 40°C; non-condensing
Dimensions
(W x D x H)
  • 610 x 35.5 x 415 mm (24.01″ x 1.40″ x 16.34″)
Weight (net/gross)
  • 6.2 kg (13.66 lb)/9 kg (19.84lb)
Certificate
  • CE, EN 60601-1
EOS
  • Windows® 7
  • Windows® 8.1
Mounting
  • VESA arm
  • Desktop stand
  • Wall mount

Ordering Information

  • MPC240
  • 24″ FHD medical touch panel computer with Intel® Core™ processor, projected capacitive multi-touch screen, AC-DC 135 W medical grade power adapter (screw type connector), EMI class B and EN 60601-1 certified

Download

Drivers

Date Description Version Download File
2017/09/22 Win10_Driver_Wireless VA2.0 107,881.3KB
2017/09/22 Win10_Driver_Proxymity AP VA2.0 5,203.3KB
2017/09/22 Win10_Driver_SD Card Reader VA2.0 8,476KB
2017/09/22 Win10_Driver_LAN VA2.0 50,038.4KB
2017/09/22 Win10_Driver_ME VA2.0 61,686.2KB
2017/09/22 Win10_Driver_Option AHXI VA2.0 11,205.6KB
2017/09/22 Win10_Driver_Graphic VA2.0 130,575.3KB
2017/09/22 Win10_Driver_Audio VA2.0 220,222.7KB
2017/09/22 Win10_Driver_Bluetooth VA2.0 15,447.5KB
2017/09/22 Win10_Driver_Chipset VA2.0 2,616.5KB
2017/09/22 Win8_Driver_Wireless VA2.0 329,182.6KB
2017/09/22 Win8_Driver_Proxymity AP VA2.0 9,899.9KB
2017/09/22 Win8_Driver_SD Card Reader VA2.0 8,401.1KB
2017/09/22 Win8_Driver_LAN VA2.0 51,144KB
2017/09/22 Win8_Driver_ME VA2.0 56,174.8KB
2017/09/22 Win8_Driver_Option AHCI VA2.0 17,204.7KB
2017/09/22 Win8_Driver_Chipset VA.0 4,438.2KB
2017/09/22 Win8_Driver_Graphic VA2.0 165,424.3KB
2017/09/22 Win8_Driver_Audio VA2.0 197,248.5KB
2017/09/22 Win8_Driver_Bluetooth VA2.0 30,782.1KB
2017/09/22 Win7_Driver_Wireless VA2.0 329,182.6KB
2017/09/22 Win7_Driver_Proximity Sensor VA2.0 4,001.6KB
2017/09/22 Win7_Driver_SD Card Reader VA2.0 8,401.1KB
2017/09/22 Win7_Driver_USB 3.0 VA2.0 5,381.2KB
2017/09/22 Win7_Driver_LAN VA2.0 51,144KB
2017/09/22 Win7_Driver_ME VA.0 51,946KB
2017/09/22 Win7_Driver_Option AHCI VA2.0 17,204.7KB
2017/09/22 Win7_Driver_Graphic VA2.0 158,853.6KB
2017/09/22 Win7_Driver_Chipset VA2.0 4,438.2KB
2017/09/22 Win7_Driver_Audio VA2.0 197,248.5KB
2017/09/22 Win7_Driver_Bluetooth VA2.0 53,201.1KB

Manual

Date Description Version Download File
2017/07/26 MPC240 User’s Manual VA1_10-27-2015 VA1.0 1,837.5KB

Certificates

Date Description Version Download File
2017/10/17 CE-Conformity Declaration 48.6KB
2017/07/17 Medical EMC Certificate 28.5KB
2017/07/17 Medical Certificate 982.2KB
