Home MPC152-845

MPC152-845

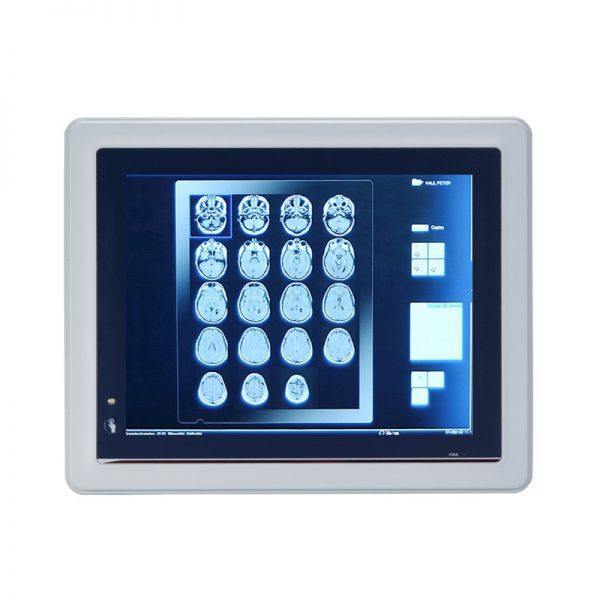

15″ XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060



Features

  • 15″ XGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3060

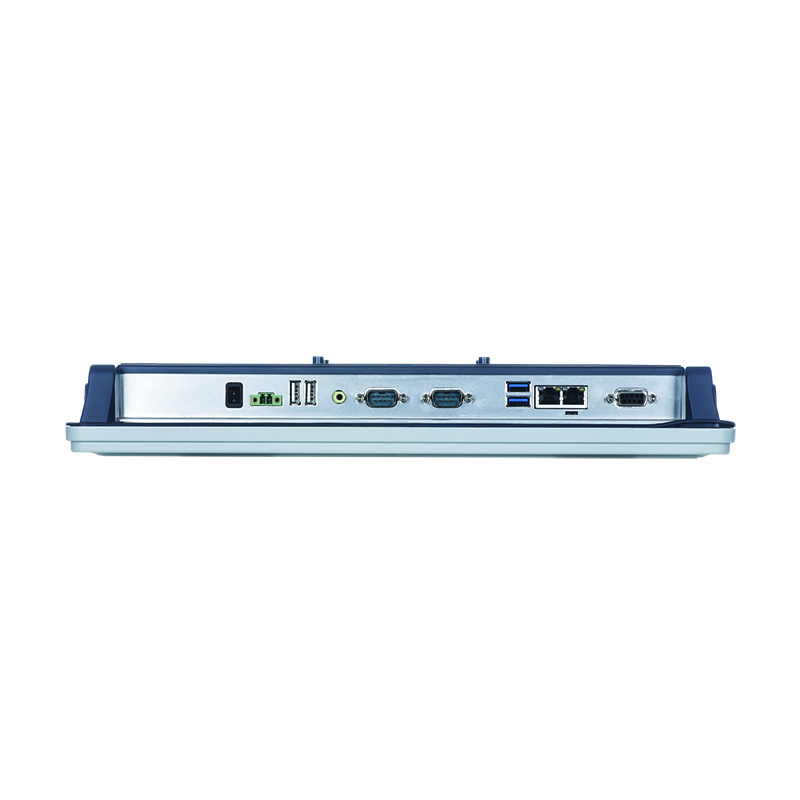

  • 2 GbE LANs, 4 USB and 2 COM
  • Plastic and IP65-rated front bezel
  • Supports RFID (optional)
  • External AT/ATX mode selection switch
  • Easy access storage design
  • Supports optional panel mount/wall mount/VESA arm/desktop stand
  • Adjust RS-232/422/485 setting via BIOS
  • 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC

Introduction

The MPC152-845 adopts a 15” XGA TFT LCD display with a resistive touchscreen and 420 nits of brightness. It is powered by the low-power dual-core Intel® Celeron® processor N3060. The fanless design prevents the circulation of dust and microbes and provides a noiseless and quiet operation in noise-sensitive environments. This 15-inch medical grade touch panel computer offers two PCI Express Mini Card slots for RFID, 3G, Bluetooth or Wi-Fi connection, enabling real-time patient data access and processing.

Specifications

LCD Panel
  • 15″ XGA TFT
  • 420 nits
  • 1024 x 768 pixels
CPU
  • Intel® Celeron® processor N3060 (up to 2.48 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps
Display
  • N/A
Audio
  • Line-out
Camera
  • N/A
Optical Drive
  • N/A
Storage
  • 1 x 2.5″ SATA HDD (7-9.5 mm height)
  • 1 x mSATA
Expansion
  • 1 x full-size PCI Express Mini Card slot with mSATA
  • 1 x full-size PCI Express Mini Card slot with SIM
Others
  • 1 x 8-bit DIO (programmable, DB9)
  • 1 x switch for power on/off
  • 1 x AT/ATX selectable switch
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Consumption
  • 32W
Power Supply
  • AC version: 100 ~ 240 V AC-DC, 65W power adapter
  • DC version: 9 ~ 36 VDC with over current protection fuse
Watchdog Timer
  • 255 levels, 0 ~ 255 sec.
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +122°F)
Relative Humidity
  • 20% ~ 90% @ +40°C; non-condensing
Vibration
  • 2G, 5 ~ 500Hz, random for SSD
Dimensions
(W x D x H)
  • 387.9 x 54.6 x 307.7 mm (15.27″ x 2.14″ x 12.11″)
Weight (net/gross)
  • 3.2 kg (7.05 lb)/5.1 kg (11.24 lb)
Certificate
  • 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC
EOS
  • Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES7
Mounting
  • VESA arm
  • Panel mount
  • Desktop stand
  • Wall mount

Ordering Information

  • MPC152-845-J
  • 15″ XGA fanless medical touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 65W power adapter (screw type connector) and EMI class B
  • MPC152-845-DC
  • 15″ XGA fanless medical touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and DC power input (terminal block connector)
  • 881251520A0E
  • Panel mount kit
  • 881251521A0E
  • Wall mount kit
  • E226171106
  • Stand kit
  • 881251203A0E
  • RFID kit
  • Wi-Fi + Bluetooth kit
