MPC103-845

10.1″ WXGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060



Features

  • 10.1″ WXGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3060

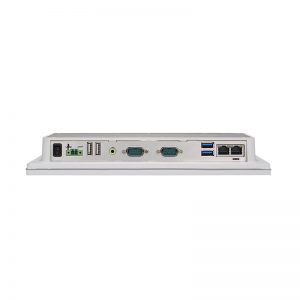

  • 2 GbE LANs, 4 USB and 2 COM
  • Plastic and IP65-rated front bezel
  • Supports RFID (optional)
  • External AT/ATX mode selection switch
  • Easy access storage design
  • Supports optional panel mount/wall mount/VESA arm/desktop stand
  • Adjust RS-232/422/485 setting via BIOS
  • 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC

Introduction

The MPC103-845 is an EN 60601-1 certified panel PC for medical applications. This super slim medical touch panel computer is powered by the Intel® Celeron® processor N3060 with a fanless and noiseless design. It adopts a 10.1-inch WXGA TFT LCD display with a projected capacitive touch screen and 350 nits of brightness. It was developed for a wide variety of applications including integration into a nursing cart, point-of-care terminal or patient infotainment terminal. Ultra-thin, lightweight and stylish MPC103-845 is made of high-quality plastic to ensure safety and durability. Its thickness of 38mm and weight of 1.08kg make it easy to install in diverse environments with limit space; also the round corner design can avoid scratching while using. In addition, MPC103-845’s fanless thermal design which is proper using in patient rooms, nurses station and clinic offers reliability and noiseless environments. The all-in-one structure with multi-touch screen also minimizes peripherals and wiring. To ensure operational safety, the MPC103-845 has passed EN60601-1, CE, FCC Class B certifications.

Specifications

LCD Panel
  • 10.1″ WXGA TFT
  • 350 nits
  • 1280 x 800 pixels
CPU
  • Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • N/A
Audio
  • Line-out
Camera
  • N/A
Optical Drive
  • N/A
Storage
  • 1 x half-slim SATA SSD (for MPC103-845-PCT-J, optional)
  • 1 x mSATA
Expansion
  • 1 x full-size PCI Express Mini Card slot with mSATA
  • 1 x full-size PCI Express Mini Card slot with SIM
Others
  • 1 x switch for power on/off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Consumption
  • 40.32 W
Power Supply
  • AC version: 100 ~ 240 V AC-DC, 65W power adapter or
  • DC version: 9 ~ 36 VDC with over current protection fuse
Watchdog Timer
  • 255 levels, 0 ~ 255 sec.
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +122°F)
Relative Humidity
  • 20% ~ 90% @ +40°C; non-condensing
Vibration
  • 2G, 5 ~ 500Hz, random for SSD
Dimensions
(W x D x H)
  • 387.9 x 54.6 x 307.7 mm (15.27″ x 2.14″ x 12.11″)
Weight (net/gross)
  • 3.2 kg (7.05 lb)/5.1 kg (11.24 lb)
Certificate
  • 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC
EOS
  • Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES7
Mounting
  • VESA arm
  • Panel mount
  • Desktop stand
  • Wall mount

Ordering Information

  • MPC103-845-J
  • 10.1″ WXGA fanless medical touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 65W power adapter (screw type connector) and EMI class B
  • MPC103-845-DC
  • 10.1″ WXGA fanless medical touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and DC power input (terminal block connector)
  • Wi-Fi + Bluetooth kit
  • Panel mount kit
  • Wall mount kit
  • Stand kit
  • RFID kit
