IRU151

RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, COM, LAN, DIO (2-in/2-out), 4 AI Channels (16-bit, 100 S/s) and 2 Mini Card Slots



Features

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 512MB DDR3 SDRAM onboard
  • 8GB eMMC flash onboard
  • 2 Mini Card slots (Wi-Fi, 3G/4G or LoRa)
  • 4 analog input channels (16-bit, 100 S/s)
  • 1 isolated COM port
  • 1 isolated DIO (2-in/2-out)
  • Embedded Linux operating system (Yocto)
  • Wide operating temperature range from -40°C to +70°C

Specifications

CPU
  • NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3-1600 onboard, 512 MB
COM
  • 1 x RS-232/422/485 with isolation 2KV
USB
  • 1 x USB 2.0 (Type A)
Ethernet
  • 1 x 10/100 Mbps with isolation 1.5KV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DIO (2-in/2-out) with Isolation 2KV
Analog Input
  • 4 x AI (Isolation)
  • Input Type Differential
  • Input Range: (software probrammable)
  • Bipolan : ±5V, ±10V
  • Resolution: 16-bit
  • Sampling Rate : 100 S/s
  • Overvoltage Protection : ±55V
  • Trigger source : Analog or digital (software selectable)
Display
  • N/A
Wireless
  • 2 x Mini Card slot
  • 1 x SIM Card socket
Storage
  • 1 x eMMC 8GB flash onboard
Others
  • 1 x EEPPROM (2 Kb)

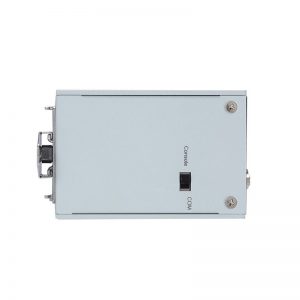

  • Console/COM switch
  • Device ID setting 0 ~ 255
Power Supply
  • 9 ~ 48 VDC power input range
Watchdog Timer
  • 0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F)
Relative Humidity
  • 10% ~ 95%
Vibration
  • 2 Gms @ (10 ~ 150Hz sine wave; operation)
Dimensions
(W x D x H)
  • 55 x 82 x 108 mm (2.16″ x 3.23″ x 4.25″)
Weight (net/gross)
  • 0.32 kg (0.71 lb)/0.53 kg (1.17 lb)
Certificate
  • FCC Part 15
  • Heavy Industrial CE
EOS
  • Linux Kernel 3.14.52
  • Yocto FIDO 1.8
Mounting
  • DIN-rail

Ordering Information

  • IRU151-FL-DC
  • DIN-rail fanless embedded system with i.MX 6UL processor, COM, LAN, DIO (2-in/2-out), 4 AI (16-bit, 100 S/s) and 2 Mini Card slots (-40°C ~ +70°C)
  • Wireless (3G/GPS or Wi-Fi) module

Download

Software

Date Description Version Download File
2018/06/21 IRU151-BSP V1.0.6 363,954.1KB

Manual

Date Description Version Download File
2018/06/21 Programmer Guide VA1.0 554.9KB
2018/06/21 User’s Manual VA1.0 872.5KB
2018/06/21 Linux User’s manual VA1.0 3,661KB
