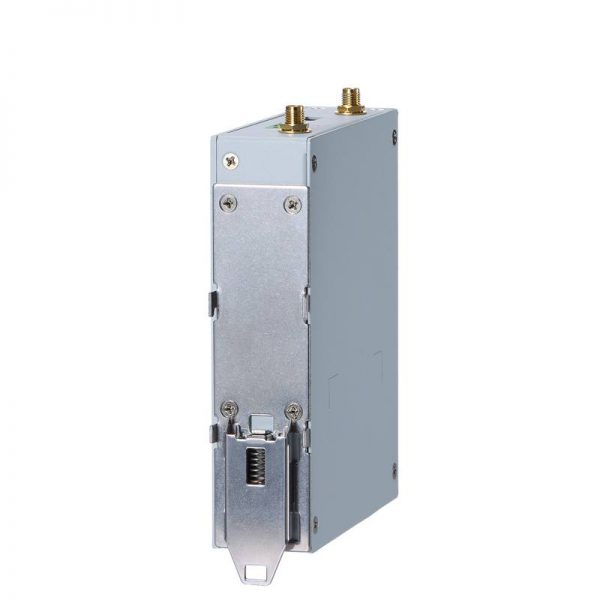

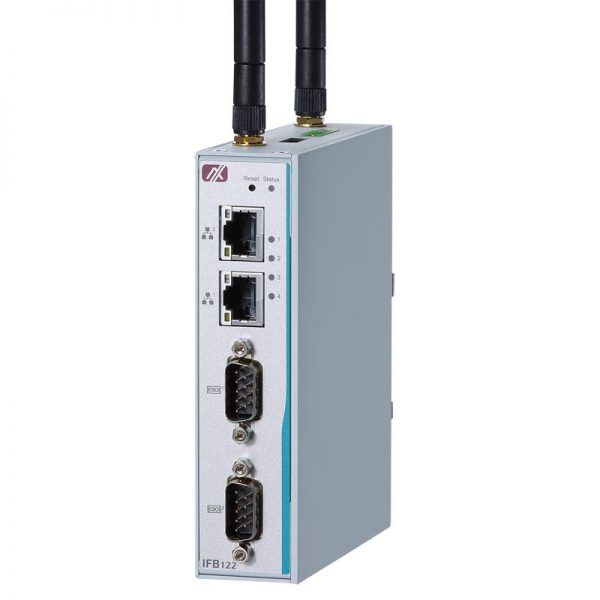

IFB122

Robust Din-rail Fanless Embedded System with RISC-based i.MX 6UL Processor, 2 COM, 2 LANs and DIO (2-IN/1-OUT)



Features

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 256 MB DDR3 SDRAM onboard
  • 4 GB eMMC Flash onboard
  • 1 Wireless (Wi-Fi or 3G/4G)
  • Supports 2 digital inputs and 1 digital output
  • Wide range DC power input (9 – 48V) with terminal block
  • Ready-to-run embedded Linux operating system (Yocto)
  • Fanless design
  • Wide temperature operation of -40°C ~ +70°C

Introduction

The IFB122 is an extremely compact RISC-based DIN-rail industrial IoT gateway powered by the low-power Freescale i.MX 6UL-2 processor in the ARM® Cortex™-A7 micro architecture. Designed to meet the challenges in critical environments, it supports extended operating temperature ranging from -40°C to 70°C, flexible wide voltage range 9V – 48V DC power input, and can withstand vibration up to 5G. One PCI Express Mini Card slot, one SIM card slot, and two internal antennas are available for Wi-Fi and 3G/4G connections. With the abilities to transmit data and manage various devices, the IP40-rated ready-to-run IFB122 is definitely a cost-effective solution for remote control/monitoring management applications such as unmanned control room, industrial machine, automatic parking lot, traffic cabinet, etc.

Specifications

CPU
  • Freescale i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset
  • SoC integrated
System Memory
  • 256 MB DDR3 Onboard
COM
  • 2 x RS-232/422/485
USB
  • 1 x USB 2.0
Ethernet
  • 2 x 10/100 Mbps
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DIO (2-IN/ 1-OUT)
Display
  • N/A
Wireless
  • 1 x PCI Express Mini card
  • 1 x SIM card
Storage
  • 1 x eMMC 4 GB Flash onboard
Others
  • 1 x Relay
Power Supply
  • 9 – 48VDC
Watchdog Timer
  • 1 sec, 255 levels
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F)
Relative Humidity
  • 10% ~ 95%
Vibration
  • 5 Gms @ (10 ~ 150Hz random; operation)
Dimensions
(W x D x H)
  • 31 x 100 x 125 mm (1.22″ x 3.94″ x 4.92″)
Weight (net/gross)
  • N/A
Certificate
  • FCC, CE
EOS
  • OS : Yocto 1.8.1 (Fido), Ubuntu 14.04
  • Kernel: 3.14.52
Mounting
  • Din-rail

Ordering Information

  • IFB122
  • Robust din-rail fanless embedded system with i.MX 6UL processor, 2 COM, 2 LANs and DIO (2-IN/1-OUT) (-40°C ~ +70°C)
  • Wall mount kit
  • Wireless (3G/GPS or Wi-Fi) module

Download

Drivers

Date Description Version Download File
2018/05/30 IFB122 Linux V1.0.11 vA1.2 352,030.9KB
2017/05/05 IFB122 Linux V.1.0.7 VA1.1 211,655.5KB
2016/12/29 IFB122 Linux V.1.0.4 VA1.0 211,654.2KB

Software

Date Description Version Download File
2018/03/14 BSP software VA1.2 352,030.9KB

Manual

Date Description Version Download File
2018/05/30 User Manual VA3 803.7KB
2018/03/20 User Manual (Simple Chinese version) VA3 1,176.3KB
2018/03/14 Linux User Manual VA4 3,524.9KB
2018/02/12 User Quick Manual VA1 263.1KB
2017/12/04 Linux User’s Manual VA3 3,578.8KB
2017/11/06 IFB122 Linux user’s manual VA1.0 3,192.5KB
2017/11/06 IFB122 Quick Guide VA1-12-12-2016 VA1.1 263.1KB

Certificates

Date Description Version Download File
2017/09/15 CE-Conformity Declaration 51.7KB
2017/06/30 FCC Verification 309.6KB
2017/06/27 CE EMC Verification 351.6KB
2017/06/27 CE LVD Verification 159.9KB
