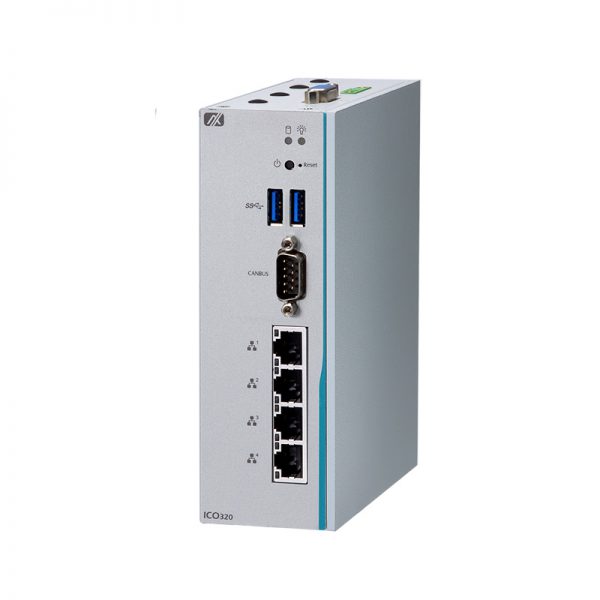

ICO320-83C

DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM or CAN, PoE LAN and DIO



Features

  • Cost-effective with fanless and cableless design
  • Intel® Celeron® processor N3350
  • 4 RJ-45 GbE PoE ports
  • 8-bit programmable DIO for IoT gateway applications (optional)
  • Wide operating temperature range from -40°C to +70°C
  • 12 ~ 24 VDC wide range power input
  • OVP, UVP, OCP, RVP power protection
  • AXView 2.0 intelligent embedded monitoring software for IIoT

Specifications

CPU
  • Intel® Celeron® processor N3350 (1.1 GHz, Dual Core)
Chipset
  • SoC integrated
System Memory
  • 1 x SO-DIMM DDR3L slot, up to 8GB
COM
  • 1 x DB9 RS-232/422/485
  • 1 x DB9 RS-232/422/485 or 1 x CANbus 2.0 A/B
USB
  • 2 x USB 3.0
Ethernet
  • N/A
PoE
  • 4 x RJ-45 PoE GbE (802.3at 30W by 4 port, optional)
  • (Intel® i211AT for ICO320-83C)
  • (Intel® i210IT for ICO320-83C-WT)
CANbus
  • 1 x CAN 2.0 A/B (DB9 connector) (optional)
Digital I/O
  • 1 x DI/DO (8-bit programmable, DB9 female
  • connector)
Display
  • 1 x VGA
Wireless
  • 1 x full-size PCI Express Mini Card slot with SIM slot (for wireless module )
  • 1 x half-size PCI Express Mini Card slot (for wireless module or half size mSATA)
Storage
  • mSATA (share with PCI Express Mini Card slot)
Others
  • 1 x reset button
  • 1 x power button
Power Supply
  • PoE Version: 12 ~ 24 VDC, 4.89 ~ 2.45A (58.68W~ 58.88W)
  • LAN Version: 12 ~ 24 VDC, 2.40 ~ 1.21A (28.80W~ 29.04W)
Watchdog Timer
  • 255 levels, 0 ~ 255 seconds/minutes
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ +158°F) with W.T. SSD
Relative Humidity
  • 5% ~ 95%, non-condensing
Vibration
  • 2 Grms w/SSD (5 ~ 500Hz, random wave)
  • 2 Grms w/HDD (10 ~ 150Hz, sine wave)
Dimensions
(W x D x H)
  • 79 x 110 x 155 mm (3.11″ x 4.33″ x 6.1″)
Weight (net/gross)
  • PoE Version: 1.2 kg (2.2 lb)/1.70 kg (3.3 lb)
  • LAN Version: 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certificate
  • CE, FCC
EOS
  • Windows® 10, Linux
Mounting
  • DIN rail
  • Wall Mounting

Ordering Information

  • ICO320-83C-N3350-4POECAN-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz), 1 COM + 1 CAN, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA
  • ICO320-83C-N3350-4POEDC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA
  • ICO320-83C-DIO-N3350-4POE-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN (PoE), 2 USB, VGA and 8-bit 5V TTL DIO
  • ICO320-83C-N3350-4LANCAN-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz), 1 COM + 1 CAN, 4 RJ-45, GbE LAN, 2 USB and VGA
  • ICO320-83C-N3350-4LANDC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN, 2 USB and VGA
  • ICO320-83C-DIO-N3350-4LAN-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN, 2 USB, VGA and 8-bit 5V TTL DIO
  • ICO320-83C-N3350-4POECAN-WT-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Atom® processor N3350 (1.1 GHz), 1 COM + 1 CAN, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA (-40°C ~ +70°C)
  • IICO320-83C-N3350-4POEWT-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Atom® processor N3350 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA (-40°C ~ +70°C)
  • ICO320-83C-N3350-4LANCAN-WT-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Atom® processor N3350 (1.1 GHz), 1 COM + 1 CAN, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA (-40°C ~ +70°C)
  • ICO320-83C-N3350-4LANWT-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Atom® processor N3350 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA (-40°C ~ +70°C)
  • ICO320-83C-N4200-4POECAN-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N4200 (1.1 GHz), 1 COM + 1 CAN, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA
  • ICO320-83C-N4200-4POEDC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N4200 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN (PoE), 2 USB and VGA
  • ICO320-83C-DIO-N4200-4POE-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N4200 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN (PoE), 2 USB, VGA and 8-bit 5V TTL DIO
  • ICO320-83C-N4200-4LANCAN-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N4200 (1.1 GHz), 1 COM + 1 CAN, 4 RJ-45, GbE LAN, 2 USB and VGA
  • ICO320-83C-N4200-4LANDC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N4200 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN, 2 USB and VGA
  • ICO320-83C-DIO-N4200-4LAN-DC (2018 Q3 available)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N4200 (1.1 GHz), 2 COM, 4 RJ-45, GbE LAN, 2 USB, VGA and 8-bit 5V TTL DIO

Download

Manual

Date Description Version Download File
2018/03/19 ICO320-83C User’s Manual VA1_12-11-2017 VA1.0 2,583.2KB
