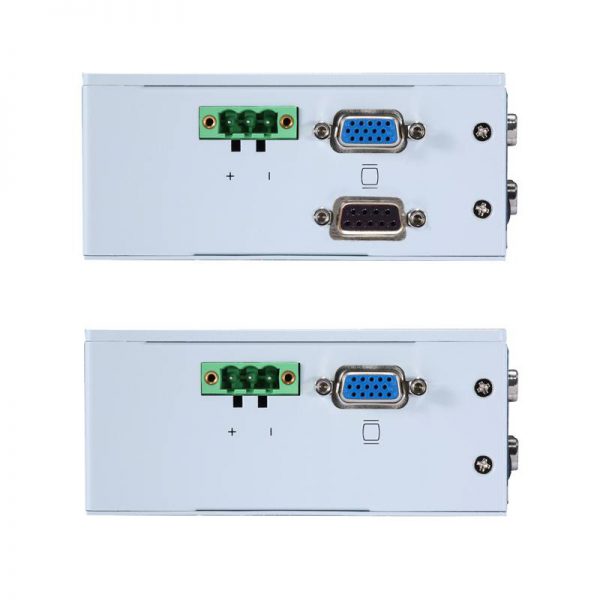

ICO300

Robust DIN-rail Fanless Embedded System with Intel® Atom™ Processor E3815/E3827, 4 COM, 2 LANs, DIO and RTC



Features

  • Fanless design
  • Intel® Atom™ processor E3815 (1.46 GHz) or E3827 (1.75 GHz)
  • 4 RS-232/422/485 ports
  • Supports Windows® 10 IoT Solution
  • 2 isolated 10/100/1000 Mbps Ethernet ports
  • 1 DIO port
  • Supports wireless (3G/GPRS or Wi-Fi)
  • 1 CF (or mSATA) and SATA SSD (or HDD)
  • Wide range 12 – 24V DC-In

Introduction

With din-rail, fanless and rugged design, the ICO300 embedded system utilizes low power 22nm Intel® Atom™ processor E3815 (1.46 GHz) and supports DDR3L system memory maximum up to 4GB, delivering high performance at competitive price. This intelligent Intel® Atom-based IoT gateway solution supports complete expandability and features, including wireless support, four RS-232/422/485 ports, two isolated Gigabit Ethernet ports, two high-speed USB 2.0 ports, RTC battery function, and wide range 12-24VDC power input with terminal block. The ICO300 is also Axiomtek’s first IoT gateway solution certified by Microsoft Azure IoT. The application-ready ICO300 simplifies the development process and achieves accelerated business transformation of IoT environment. This intelligent IoT gateway system provides a perfect solution for IoT & M2M, industrial and embedded applications such as power plant automation, facility monitoring systems, intelligent transportation systems and other harsh environments.

Specifications

CPU
  • Intel® Atom™ Processor E3815 (1.46GHz) or E3827 (1.75GHz)
Chipset
  • SoC Integrated
System Memory
  • 1 x SO-DIMM DDR3L-1333/1600, up to 4GB (E3815) or up to 8GB (E3827)
COM
  • 4 x RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps
  • (Intel® i211AT for ICO300)
  • (Intel® i210IT for ICO300-WT)
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DI/DO (8 bit programmable, DB9 female connector)
  • Voltage is 5V TTL-level
  • ESD protection corresponds to IEC6100-4-2 (± 8KV (Air); ± 4KV (contact))
  • Programming:
    I/O sink current is 10mA (max.)
    Input/output can be programming
Display
  • 1 x VGA
Wireless
  • 1 x Full-size PCI Express Mini Card
  • 1 x SIM socket
  • 2 x Antenna
Storage
  • 1 x CompactFlash™ (or mSATA)
  • 1 x SATA SSD (or HDD)
Others
  • RTC Battery function
Power Supply
  • 12-24VDC
  • 12-24VDC, 1.21-0.66A (ICO300-E3815)
    12-24VDC, 1.42-0.74A (ICO300-E3827)
  • Power Protection: DC Version, OVP, Reverse protection
Watchdog Timer
  • 255 levels, 1~255 sec
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ +158°F)
Relative Humidity
  • 10% ~ 95%
Vibration
  • 2g@5~500Hz, amplitude 0.35 mm (operation/ storage/ transport)
Dimensions
(W x D x H)
  • 48 x 110 x 155 mm (1.88″ x 4.33″ x 6.10″)
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certificate
  • CE, FCC, UL
EOS
  • Windows® 7 Embedded
  • Windows® 8 Embedded
  • Linux support package
  • Windows® 10 IoT core pro
Mounting
  • DIN rail
  • Wall Mounting

Ordering Information

  • ICO300-E3815-DC
  • Robust DIN-rail fanless embedded system with Intel® Atom™ processor E3815 1.46 GHz and 4 COM ports
  • (-20°C ~ +70°C)
  • ICO300-E3815-WT-DC
  • Robust DIN-rail fanless embedded system with Intel® Atom™ processor E3815 1.46 GHz and 4 COM ports (-40°C ~ +70°C)
  • ICO300-E3827-DC
  • Robust DIN-rail fanless embedded system with Intel® Atom™ processor E3827 1.75 GHz and 4 COM ports (-20°C ~ +70°C)
  • ICO300-E3815-DIO-DC
  • Robust DIN-rail fanless embedded system with Intel® Atom™ processor E3815 1.46 GHz, 4 COM ports and DIO (-20°C ~ +70°C)
  • ICO300-E3827-DIO-DC
  • Robust DIN-rail fanless embedded system with Intel® Atom™ processor E3827 1.75 GHz, 4 COM ports and DIO (-20°C ~ +70°C)
  • CompactFlash™
  • 4GB or above (with W.T. CF)
  • 2.5″ SATA SSD or HDD (with W.T. SSD or HDD)
  • DDR3L SO-DIMM
  • 2GB ~ 8GB (with W.T. memory)
  • Wall mount kit
  • Wireless (3G/GPRS or Wi-Fi) module
