Home ICO120-83D

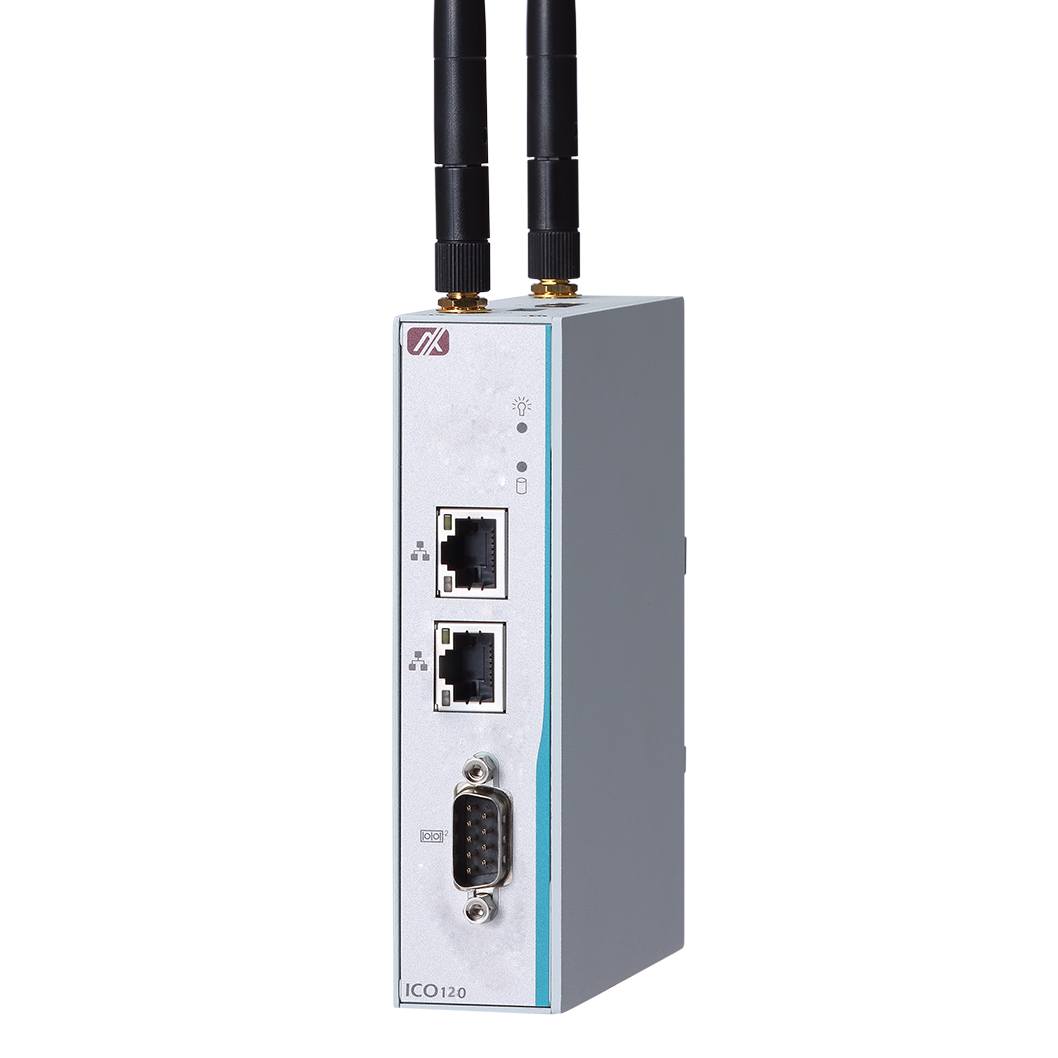

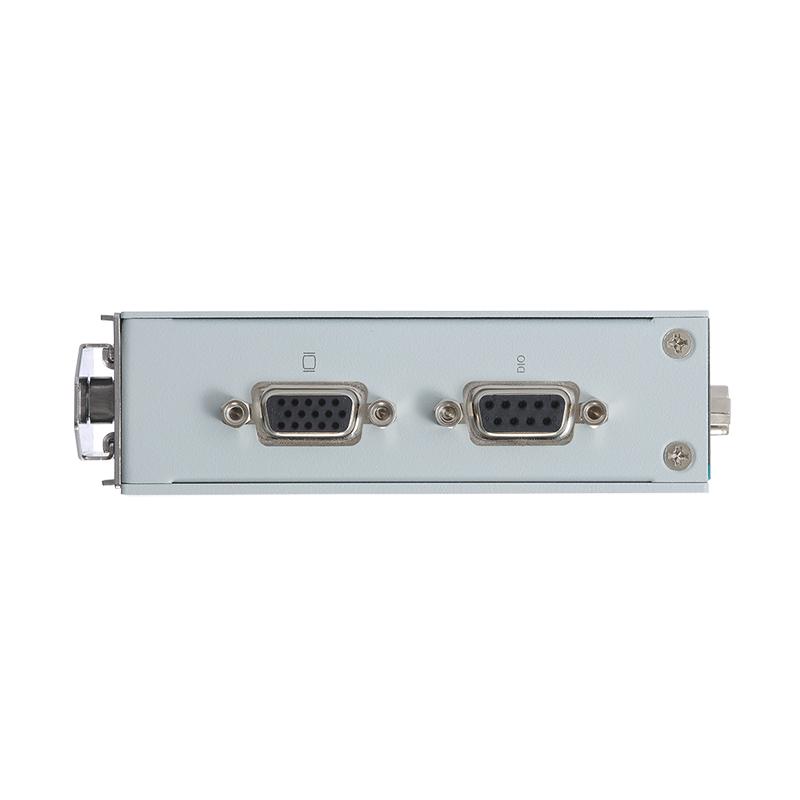

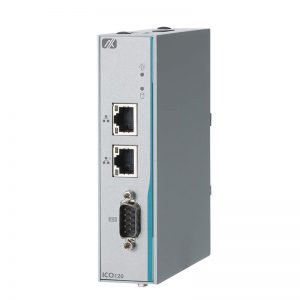

ICO120-83D

DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350, 1 COM or CAN, 2 LAN, 2 USB and 1 DIO



Features

  • Extreme cost-effective with fanless and cableless design
  • Intel® Celeron® processor N3350
  • 1 COM or CAN, 2 USB, 2 GbE LAN
  • 8-bit programmable DIO for IoT gateway applications
  • Wide operating temperature range from -20°C to +70°C
  • 12 ~ 24 VDC wide range power input
  • OVP, UVP, OCP, RPP power protection design
  • AXView 2.0 intelligent embedded monitoring software for IoT

Specifications

CPU
  • Intel® Celeron® processor N3350 (1.1 GHz, Dual Core)
Chipset
  • SoC integrated
System Memory
  • 1 x SO-DIMM DDR3L-1866, up to 8GB
COM
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
PoE
  • N/A
CANbus
  • 1 x CAN 2.0 A/B (DB9 connector)
Digital I/O
  • 1 x DI/DO (8-bit programmable, DB9 female connector)
Display
  • 1 x VGA
Wireless
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x Half-size PCI Express Mini Card slot
  • 1 x SIM card socket
Storage
  • 1 x half-size mSATA or 1 x eMMC flash on board (optional)
Others
  • AXView 2.0
Power Supply
  • 1 x DC power input with terminal block
Watchdog Timer
  • 1 WDT
  • One step is 1 sec, 255 levels
Construction
  • Aluminum, IP40
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ +158°F)
  • Optional for -40°C ~ +70°C (-40°F ~ +158°F)
Relative Humidity
  • 10% ~ 95%
Vibration
  • 2G@5 ~ 500Hz, amplitude 0.35 mm (operation/storage/transport)
Dimensions
(W x D x H)
  • 31 x 100 x 125 mm (1.22″ x 3.93″ x 4.92″)
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.46 kg (1 lb)
Certificate
  • CE
  • FCC Class A
EOS
  • Windows® 10 IoT
  • Linux support package
  • AXView 2.0
Mounting
  • DIN rail
  • Wall Mounting

Ordering Information

  • ICO120-83D-N3350-COM
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz, Dual Core), 1 COM, 2 GbE, 1 DIO
  • ICO120-83D-N3350-CAN
  • Robust DIN-rail fanless embedded system with Intel® Intel® Celeron® processor N3350 (1.1 GHz, Dual Core), 1 CANbus 2.0A/B, 2 GbE, 1 DIO
  • CO120-83D-N3350-COMWT
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz, Dual Core), 1 COM, 2 GbE, 1 DIO, -40°C ~ +70°C
  • ICO120-83D-N3350-CANWT
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz, Dual Core), 1 CANbus 2.0A/B, 2 GbE, 1 DIO, -40°C ~ +70°C

Download

Manual

Date Description Version Download File
2018/03/19 ICO120-83D User’s Manual VA1_11-01-2017 VA1.0 2,124.3KB
