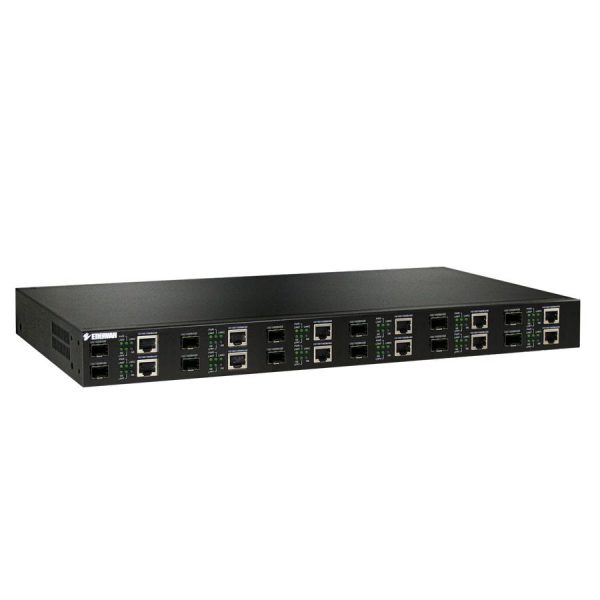

EMC1600 Series



16-Bay Media Converter and Ethernet Extender Chassis

Powers up to 16 media converters or ethernet extenders with redundant power supply modules
Capable of hot-swap installations of compatible EtherWAN media converters and Ethernet extenders



หมวดหมู่:

Overview

The EMC1600 is a 16-Bay chassis specifically designed to house and power selected EtherWAN Media Converters and Ethernet Extenders in a 19” rack enclosure.

The hot swappable design enables easy installation, product additions, and deletions of EtherWAN Media Converters and Ethernet Extenders without interrupting existing communications within the chassis. Each bay is electrically isolated from each other with fused over-current protection resulting is unprecedented reliability. The redundant internal power supplies provide both power redundancy and load sharing. Support for both AC & DC power input options allows the EMC1600 to be used worldwide. With its solid metal enclosure, standard 19” rack-mount and two-unit height design, the EMC1600 is ideal for interconnecting disparate network media and extending Ethernet beyond its boundaries.

EtherWAN — “When Connectivity is Crucial.

Spotlight

Hot-Swappable

» The chassis system is capable of hot-swap installations of select EtherWAN media converter and Ethernet extender models

16-Bay Rackmount Chassis

» Powers up 16 devices with redundant power supply modules

Supports EtherWAN’s Ethernet Extenders and Media Converters

» Supported media converter and Ethernet extender models: EL2321, EL2211, EL2315, EM1000/EM2000, EM1000S/EM2000S, EM1020, EM120, EL100/EL200, EL110/EL210, and ED3501 series

Specifications

Power

Input

  • • 100-240VAC, 50-60Hz Internal Universal PSU
  • • ±48VDC

Power Consumption

  • • System: 5.4W Max

Protection


Mechanical

Casing

    • • Over current protection
      • • Metal case



  • Dimensions
    • • 440 x 276 x 90mm (W x D x H)
        (17.32″ x 10.87″ x 3.54″)
    • • Standard 19″ rack-mount size, two-unit-height

    Weight

    • • 6.8Kg (14.96lbs.)

    Installation

    • • Rack mounting

    Interface

    LED Indicators

    • • Per Unit: Power Status (Power)

    Relay Output

    • • 30VDC/0.6A

    Environment

    Operating Temperature

    • • 0 to 45°C (32 to 113°F)

    Storage Temperature

    • • -10 to 70°C (14 to 158°F)

    Ambient Relative Humidity

    •
    • • 5% to 95% (non-condensing)

    Regulatory Approvals

    ISO

    • • Manufactured in an ISO 9001 facility

    Safety

    • UL 60950-1

    Emission Compliances

    • CE Mark Class A
    • FCC Part 15B Class A

Dimensions

Ordering Info

Model

EMC160016-Bay Media Converter and Ethernet Extender Chassis, including 2 AC Power Supplies (EMC1600-RPSA)
EMC1600-RPSARedundant AC Power Supply (84W) for EMC1600
EMC1600-RPSA2Redundant AC Power Supply (108W) for EMC1600
EMC1600-RPSDRedundant DC 48V Power Supply (65W) for EMC1600
