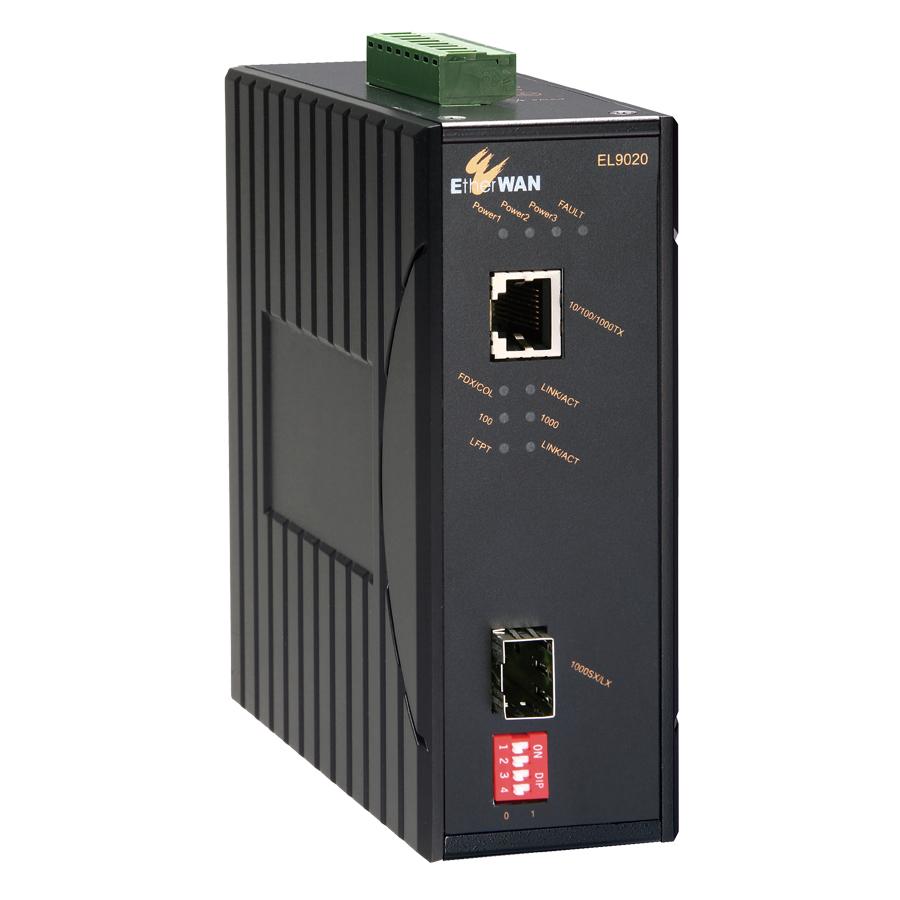

EL9020 Series



Hardened 10/100/1000BASE-TX to Gigabit SFP Media Converter

Link Fault Pass Through (LFPT)
Alarms for power and link failure
DIN-rail, panel, or rack mounting



หมวดหมู่:

Overview

The EL9020 Series provides media conversion between 10/100/1000BASE-TX and 1000BASE SFP Fiber. Built specifically for missioncritical applications in harsh environments, the EL9020’s hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options the EL9020 is the ideal media converter for environments where connectivity is crucial.

EtherWAN — “When Connectivity is Crucial.

Spotlight

Gigabit Connectivity

» Auto 10/100/1000BASE-TX and 1000BASE-SX/LX/BX Ethernet transmission conversion
» 1000Mbps Full duplex, 10/100MBps Full/Half duplex
» SFP socket flexible for Gigabit fiber optic expansion

UL 508 Certification

» Specific design for industrial communication applications with UL 508 safety certification

Wide Operating Temperature

» -40 to 75°C wide operating temperature range design is suitable for installation in outdoor cabinet

Specifications

Technology

Standards

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control

Forward and Filtering Rate

  • • 1,488,100pps for 1000Mbps

Processing Type

  • • Auto Negotiation
  • • Half duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto-MDI/MDIX

Power

Input

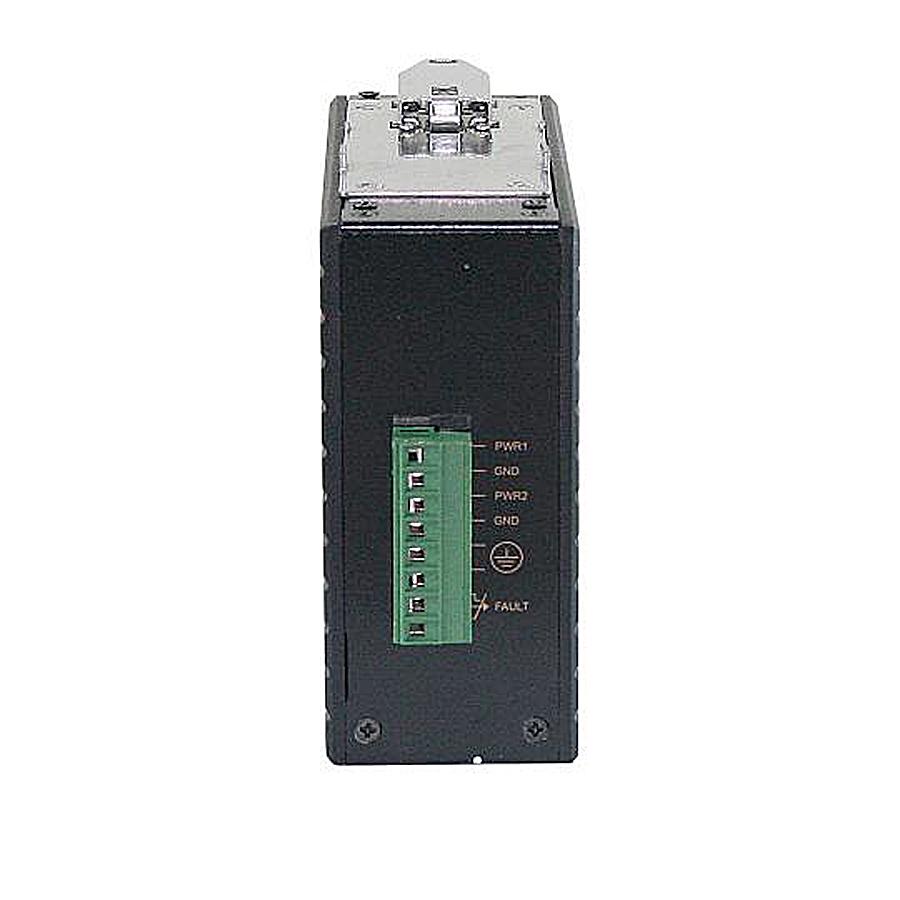

  • • 12-48VDC (Terminal Block)
  • • 12VDC (DC Jack)

Power Consumption

  • • 7.68W Max, 0.16A@48VDC

Protection

  • • Overload current protection
  • • Reverse polarity protection

Mechanical

Casing

  • • Aluminum Case
  • • IP30

Dimensions

  • • 50 x 110 x 135mm (W x D x H)
      (1.97″ x 4.33″ x 5.31″)

Weight

  • • 0.8Kg (1.76lbs.)

Installation

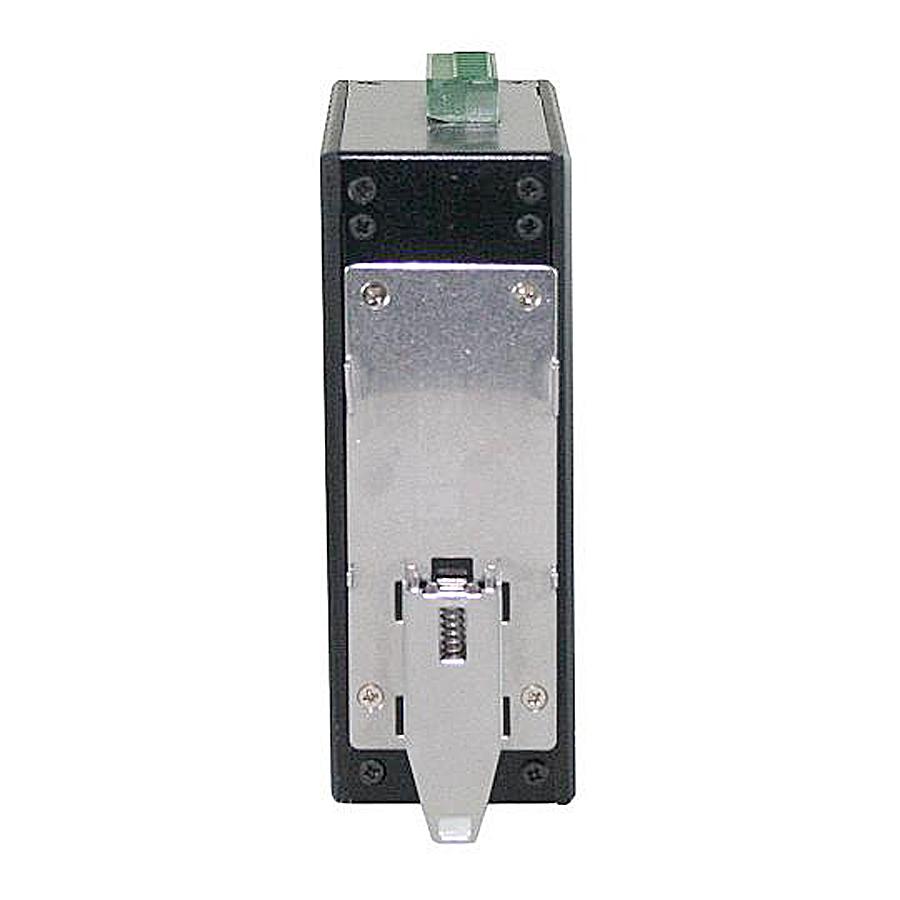

  • • DIN-Rail (Top hat type 35mm), Panel, or Rack mounting

Interface

Ethernet Port

  • • 10/100/1000BASE-TX: 1 port
  • • Gigabit SFP: 1 port

LED Indicators

  • • Per Unit: Power 1, Power 2, Power 3, Fault, LFPT
  • • Per 10/100/1000TX Port: Link/Activity, 100M, 1000M, Full-duplex/Collision
  • • Per Gigabit SFP Port : Link/Activity

DIP Switch

  • • No.1: LFPT On/Off
  • • No.2: Alarm for copper port On/Off
  • • No.3: Alarm for fiber port On/Off
  • • No.4: Auto-negotiation for fiber port On/Off

Alarm Contact

  • • Relay contact rating with current 1A/30VDC, 0.5A/120VAC

Environment

Operating Temperature

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)

Storage Temperature

  • • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • • 5% to 95% (non-condensing)

Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

Safety

  • UL 508

EMI

  • FCC Part 15B Class A
  • VCCI Class A
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-3

EMS

  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance

  • IEC 60068-2-6 Fc (Vibration Resistance)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)

Industrial Compliance

  • NEMA TS2

Dimensions

Ordering Info

Model

EL9020-00B10/100/1000BASE-TX to Gigabit SFP Hardened Media Converter

DIN-Rail mounting kit included.


Optional Accessories

KP-AA96-480Panel mounting kit
HDR-30-2430W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-2460W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-2475W/3.2A DIN-Rail 24VDC Industrial Power Supply
EX41-145046-XPower Supply 45W 12VDC with Open Wire
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
EX41-145044-XPower Supply 45W 12VDC with Latch
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA

Hardened SFP Gigabit Fiber Tranceivers

Part NumberDistanceCable TypeConnector TypeWavelength
EX-1250NSP-SB1L-A S275m/550m62.5/125μm/50/125μm, MMDuplex LC850nm
EX-1250TSP-MB4L-A S10Km9/125μm, SMDuplex LC1310nm
EX-LS38-C3L-TI-N-EB (DDM)40Km9/125μm, SMDuplex LC1310nm
EX-LS48-C3U-TI-N-EB (DDM)70Km9/125μm, SMDuplex LC1550nm
EX-1250TBP-MB1L-A S550m62.5/125μm/50/125μm, MMSingle LCTX: 1310nm/RX: 1550nm
EX-1250TBP-LB1L-A S550m62.5/125μm/50/125μm, MMSingle LCTX: 1550nm/RX: 1310nm
EX-1250TBP-MB4L-A S10Km9/125μm, SMSingle LCTX: 1310nm/RX: 1550nm
EX-1250TBP-KB4L-A S10Km9/125μm, SMSingle LCTX: 1550nm/RX: 1310nm
EX-1250TBP-MB5L-A S20Km9/125μm, SMSingle LCTX: 1310nm/RX: 1550nm
EX-1250TBP-KB5L-A S20Km9/125μm, SMSingle LCTX: 1550nm/RX: 1310nm

More SFP options also available upon request.
