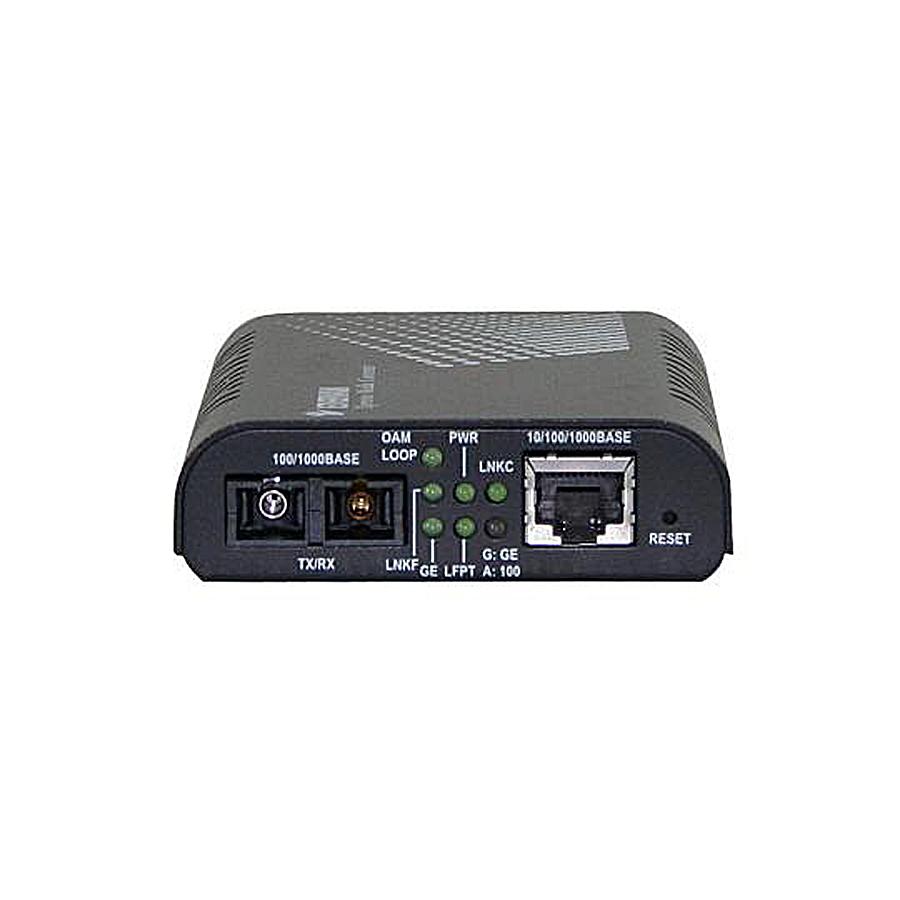

EL2211 Series


10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter

Link Fault Pass Through (LFPT)
Wall mounting or EtherWAN’s EMC1600 chassis for easy group installation with power redundancy




The EL2211 Series provides media conversion between 10/100/1000BASE-T(X) and 1000BASE-SX/LX/BX Fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. With Gigabit transmission rate, the EL2211 supports Jumbo Frame up to 9K bytes. The EL2211 is the ideal media converter for enterprise environments.

EtherWAN — “When Connectivity is Crucial.


Gigabit Connectivity

» Auto 10/100/1000BASE-TX and 1000BASE-SX/LX/BX Ethernet transmission conversion
» 1000Mbps Full duplex, 10/100MBps Full/Half duplex

Link-Fault-Pass-Through (LFPT)

» LFPT function let network operators be aware of network connection status
» When fiber link is down, LFPT function will turn down Ethernet port to inform connected device that the link is down and vice versa

Optional Chassis System

» Supports wall mounting or EtherWAN’s EMC1600 chassis system for easy group installation with power redundancy

UL 60950 Certification

» Certified by UL 60950-1 standard, providing protections to installers from risk of injury or damage




  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control

Forward and Filtering Rate

  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Processing Type

  • • Store-and-Forward
  • • Auto Negotiation
  • • Half duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto-MDI/MDIX



  • • 12VDC

Power Consumption

  • • 2.76W Max. 0.23A@12VDC



  • • Aluminum Case


  • • 80.3 x 109.2 x 23.8mm (W x D x H)
      (3.16″ x 4.3″ x 0.94″)


  • • 150g (0.336lbs.)


  • • Wall mounting, or in EMC1600 Chassis System


Ethernet Port

  • • 10/100/1000BASE-TX: 1 port
  • • 1000BASE-SX/LX/BX: 1 port

LED Indicators

  • • Per Unit: Power, LFPT
  • • Per Port: Link/Act, Speed


Operating Temperature

  • • 0 to 50°C (32 to 122°F)

Storage Temperature

  • • -20 to 70°C (-4 to 158°F)

Ambient Relative Humidity

  • • 5% to 95% (non-condensing)

Regulatory Approvals


  • • Manufactured in an ISO 9001 facility


  • UL 60950-1

Emission Compliances

  • CE Mark Class A
  • FCC Part 15B Class A
  • VCCI Class A


Ordering Info


EL2211-X1Z 10/100/1000BASE-TX to 1000BASE-X Media Converter

Gigabit Port Options (X)

3 1000BASE-SX (SC) – 550m (850nm)
4 1000BASE-SX (SC) – 2Km (1310nm)
5 1000BASE-SX (ST) – 550m (850nm)
A 1000BASE-LX (SC) – 10Km
B 1000BASE-LX (SC) – 20Km (1310nm)
E 1000BASE-LX (SC) – 40Km (1310nm)
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM–TX: 1550nm/RX: 1310nm-20Km

Power Adapter Options (Z)

A with external power adapter for AU
E with external power adapter for EU
J with external power adapter for JP
K with external power adapter for UK
U with external power adapter for USA
3C with external power adapter for China
