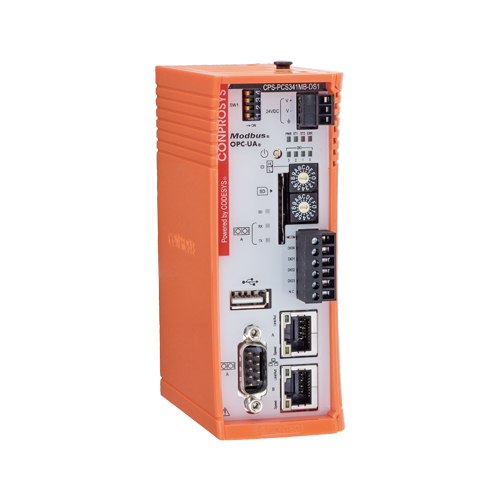

CPS-PCS341MB-DS1-1201

CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C

  • Collaborate with the CODESYS
  • Along with Modbus TCP Master
  • Together with OPC UA Server
  • Opto-coupler isolated input (Current sink output compliant), Opto-coupler isolated open collector output (Current sink type)
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and +60°C



หมวดหมู่: ,

Features

Overview / Features

This product is a Modbus Master controller with isolated digital input and output (Input: 4ch, Output: 4ch), RS232C, and LAN interface. You can affix the stacking devices of our CONPROSYS series as you desire. (up to 32 devices).

  • Collaborate with the CODESYS

    • This product features the CODESYS Soft PLC. CODESYS is a device-independent-PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST and LD.
  • Along with Modbus TCP Master

    • Modbus is a communication protocol widely applied in the industrial field. Data collecting and controlling can be carried out with Modbus TCP Slave compliant devices.
  • Together with OPC UA Server

    • OPC UA (Unified Architecture) is an advanced model of OPC specifications, which features refined capability of transmitting and receiving semantic description data. OPC-UA is a platform independent standard based on TCP. The product can be operated with HMI and SCADA software that are provided from differing makers and applicable to OPC-UA client.
  • Opto-coupler isolated input (Current sink output compliant), Opto-coupler isolated open collector output (Current sink type)

    • With response speed 200μ sec, the product has 4 channels of opto-coupler isolated input (Current sink output compliant), and opto-coupler isolated open collector output (Current sink type) respectively.
  • Compact Design

    • Compact design, 44.7 (W) ×94.7 (D) ×124.8 (H) mm, features flexibility in installation.
  • Adaptable to a wide range of temperature between -20 and +60°C

    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

Specifications

Controller unit

Communication Ports Ethernet (LAN)
Programming CODESYS (IEC61131-3)
Stack bus CONPROSYS stack
Function OPC UA server; Modbus master; Modbus/TCP slave

Digital I/O

Input Channels 4-ch
Output Channels 4-ch *Share with inputs
Bi-directional I/O Channels
Response Time (Input) 200μsec (max.)
Response Time (Output) 2msec (max.)
Operating Voltage (Input)
Operating Voltage (Output)
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Semiconductor relay output
Built-in Power Supply 12VDC

Serial comm.

Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 300 ~ 115,200bps
Isolation Property
Transmission Method

Ordering Information

Ordering Information

Model Description / Certification
CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C

  • CE marking
  •

  • FCC compliant
  •

Options

Analog I/O

Item Item Name
CPS-AI-1608ALI Analog Input CONPROSYS I/O Module / 8ch(16bit 50ks/s) / Bus Isolation
CPS-AI-1608LI Analog Input CONPROSYS I/O Module / 8ch(16bit 100ks/s) / Bus Isolation
CPS-AO-1604LI Analog Output CONPROSYS I/O Module / 4ch(16bit 50ks/s) / Bus Isolation
CPS-AO-1604VLI Analog Output CONPROSYS I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
CPS-SSI-4P Pt100 Temperature Sensor Input CONPROSYS I/O Module / 4ch(0.01°C 5s/s) / Bus Isolation

Digital I/O

Item Item Name
CPS-DI-16L Digital input CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DI-16RL Digital input CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-DIO-0808BL Digital I/O CONPROSYS I/O module 8ch/8ch (12VDC on-board power supply isolated 12 – 24VDC)
CPS-DIO-0808L Digital I/O CONPROSYS I/O module 8ch/8ch (isolated 12 – 24VDC)
CPS-DIO-0808RL Digital I/O CONPROSYS I/O module 8ch/8ch (negative-common isolated 12 – 24VDC)
CPS-DO-16L Digital output CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DO-16RL Digital output CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-RRY-4PCC Relay output CONPROSYS I/O module 4ch ( – 240VAC / – 24VDC)

Counter

Item Item Name
CPS-CNT-3202I Counter CONPROSYS I/O module 2ch (32bit Up/Down count 500kHz) / Incremental encoder interface / Isolated

Serial comm.

Item Item Name
CPS-COM-1PC Serial Communication CONPROSYS I/O Module RS-232C 1ch / Isolation and Surge Protection
CPS-COM-1PD Serial Communication CONPROSYS I/O Module RS-422A/485 1ch / Isolation and Surge Protection
CPS-COM-2PC Serial Communication CONPROSYS I/O Module RS-232C 2ch / Isolation and Surge Protection
CPS-COM-2PD Serial Communication CONPROSYS I/O Module RS-422A/485 2ch / Isolation and Surge Protection

Power Supply / AC Adapter

Item Item Name
CPS-PWD-30AW24-01 24VDC AC-DC Converter
