CPS-PCS341EC-DS1-1201

CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
  • Collaborate with the CODESYS
  • Harmonize with EtherCAT Master
  • Together with OPC UA Server
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and +60°C
  • A powerful running platform without fan

หมวดหมู่: ,

Features

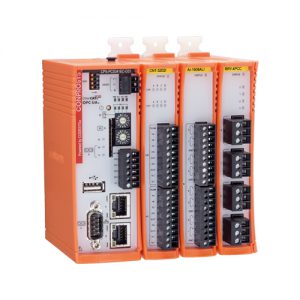

This product is an EtherCAT Master controller with isolated digital input and output (Input: 4ch, Output: 4ch), RS232C, and LAN interface. You can affix the stacking devices of our CONPROSYS series as you desire. (Up to 32 devices).

  • Collaborate with the CODESYS

    • This product features the CODESYS Soft PLC. CODESYS is a device-independent-PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.
  • Harmonize with EtherCAT Master

    • EtherCAT is a strong, efficient real-time Ethernet field bus system with an open protocol.
  • Together with OPC UA Server

    • OPC UA (Unified Architecture) is an advanced model of OPC specifications, which presents refined capability of transmitting and receiving semantic description data. OPC-UA is a platform independent standard based on TCP.
  • Compact Design

    • Compact design, 44.7 (W) ×94.7 (D) ×124.8 (H) mm, features flexibility in installation.
  • Adaptable to a wide range of temperature between -20 and +60°C

    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
  • A powerful running platform without fan

    • The product contains the ARM Cortex-A8 processor (600MHz) and the DDR3 512MB system memory.

Specifications

Controller unit

Communication Ports Ethernet (LAN)
Programming CODESYS (IEC61131-3)
Stack bus CONPROSYS stack
Function OPC UA server; EtherCAT master; Modbus/TCP slave

Digital I/O

Input Channels 4-ch
Output Channels 4-ch *Share with inputs
Bi-directional I/O Channels
Response Time (Input) 200μsec (max.)
Response Time (Output) 2msec (max.)
Operating Voltage (Input)
Operating Voltage (Output)
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Semiconductor relay output
Built-in Power Supply

12VDC

Serial comm.

Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 300 ~ 115,200bps
Isolation Property
Transmission Method
