Product

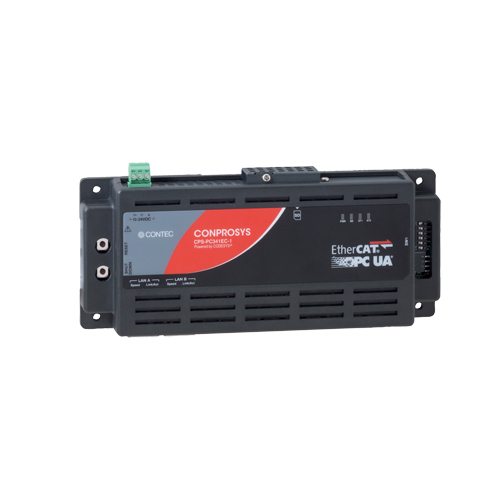

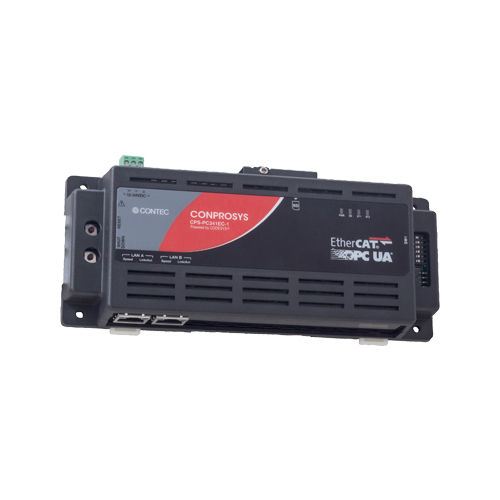

CPS-PC341EC-1-9201

CONPROSYS PAC Series – Integrated Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA
  • Collaborate with the CODESYS
  • Harmonize with EtherCAT Master
  • Together with OPC UA Server
  • Compact Design
  • Adaptable to a temperature range between -20 to +60°C
  • Capable of adapting a wide-range power (12 – 24VDC)



หมวดหมู่: ,

Features

This product is an EtherCAT Master controller equipped with ARM Cortex-A8 processor (600MHz) and 512MB DDR3-SDRAM. On-board NOR-FLASH is utilized for a booting device. This product contains the CODESYS SoftPLC. You can create your own PLC program and run with the CODESYS software. CODESYS is a device- independent-PLC-programming system that is compliant with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.

  • Collaborate with the CODESYS

    • CODESYS is a device-independent-PLC-programming system that is compliant with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.
  • Harmonize with EtherCAT Master

    • EtherCAT is a strong, efficient real-time Ethernet field bus system with an open protocol.
  • Together with OPC UA Server

    • OPC UA (Unified Architecture) is an advanced model of OPC specifications, which presents refined capability of transmitting and receiving semantic description data. OPC-UA is a platform independent standard based on TCP.
  • Compact Design

    • Compact design of 188.0(W) x 78.0(D) x 30.5(H), features flexibility in installation.
  • Adaptable to a temperature range between -20 to +60°C

    • The product is capable of operating in the temperature between -20 to + 60°C. It can be installed in the various environments.
  • Capable of adapting a wide-range power (12 – 24VDC)

    • The product is capable of dealing with a wide range of power in the differing environments. Power connector also has a FG terminal.

Specifications

Controller unit

Communication Ports Ethernet (LAN)
Programming CODESYS (IEC61131-3)
Stack bus
Function OPC UA server; EtherCAT master; Modbus/TCP slave

Ordering Information

Ordering Information

Model Description / Certification
CPS-PC341EC-1-9201 CONPROSYS PAC Series – Integrated Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA

  • CE marking
  •

  • FCC compliant
  •

  •

Options

Power Supply / AC Adapter

Item Item Name
CPS-PWD-15AW12-01 12VDC AC-DC Converter

Storage

Item Item Name
SD-4GB-A 4GB SD Card

Other Accessories

Item Item Name
CPS-MAG01-4 Magnet (Four Piece Set)
